Additional information
| Weight | N/A |
|---|---|
| Length | NO 1 TRENCH STRUT 32mm (0.5-0.8m) 37 kN, NO 2 TRENCH STRUT 32 mm (0.8-1.1m) 30 kN, NO 3 TRENCH STRUT 32mm (1.1-1.4m) 30 kN, NO 4 TRENCH STRUT 32mm (1.4-1.7m) 27 kN |
€38.00 – €49.00 Exl VAT

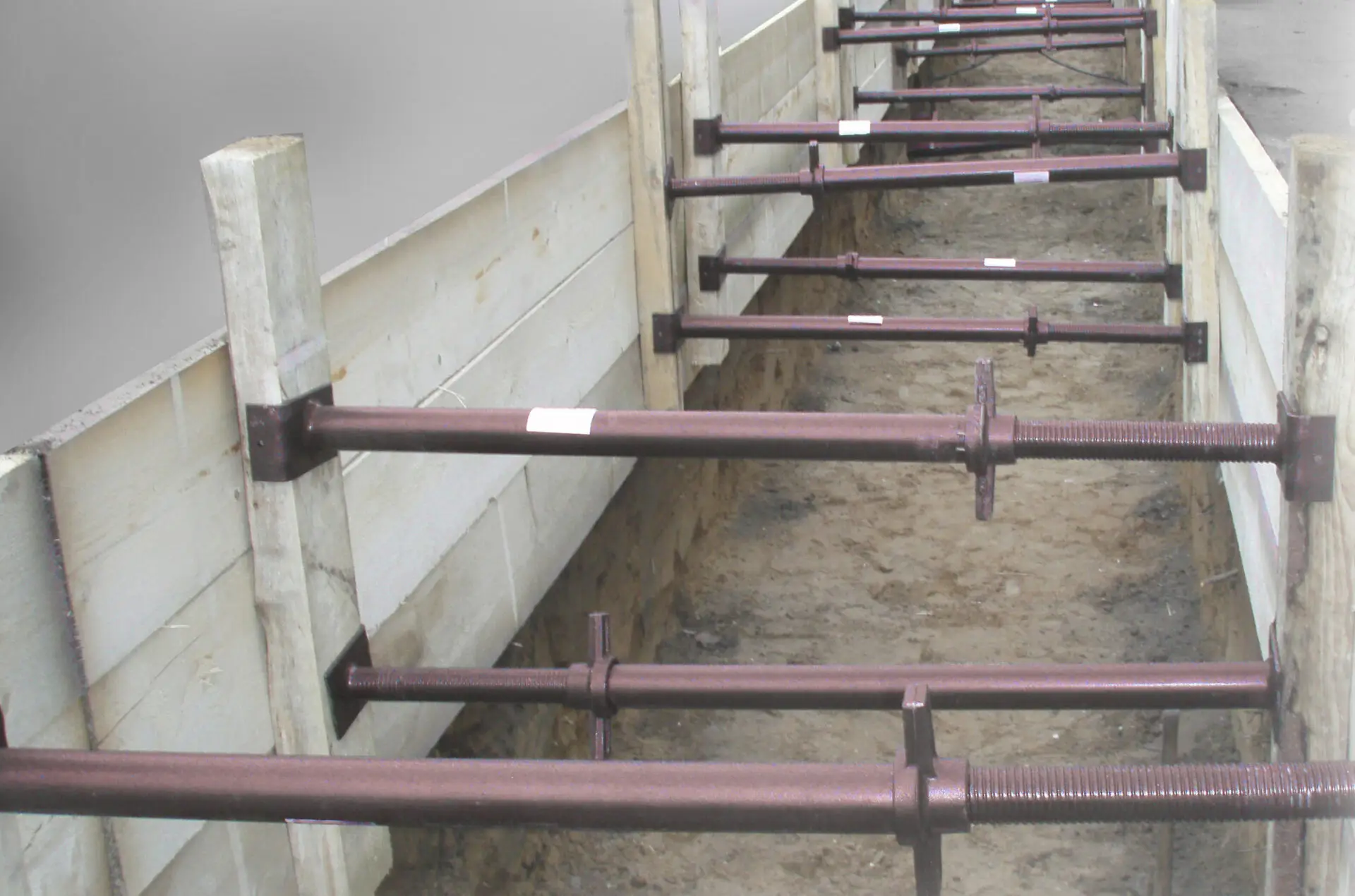

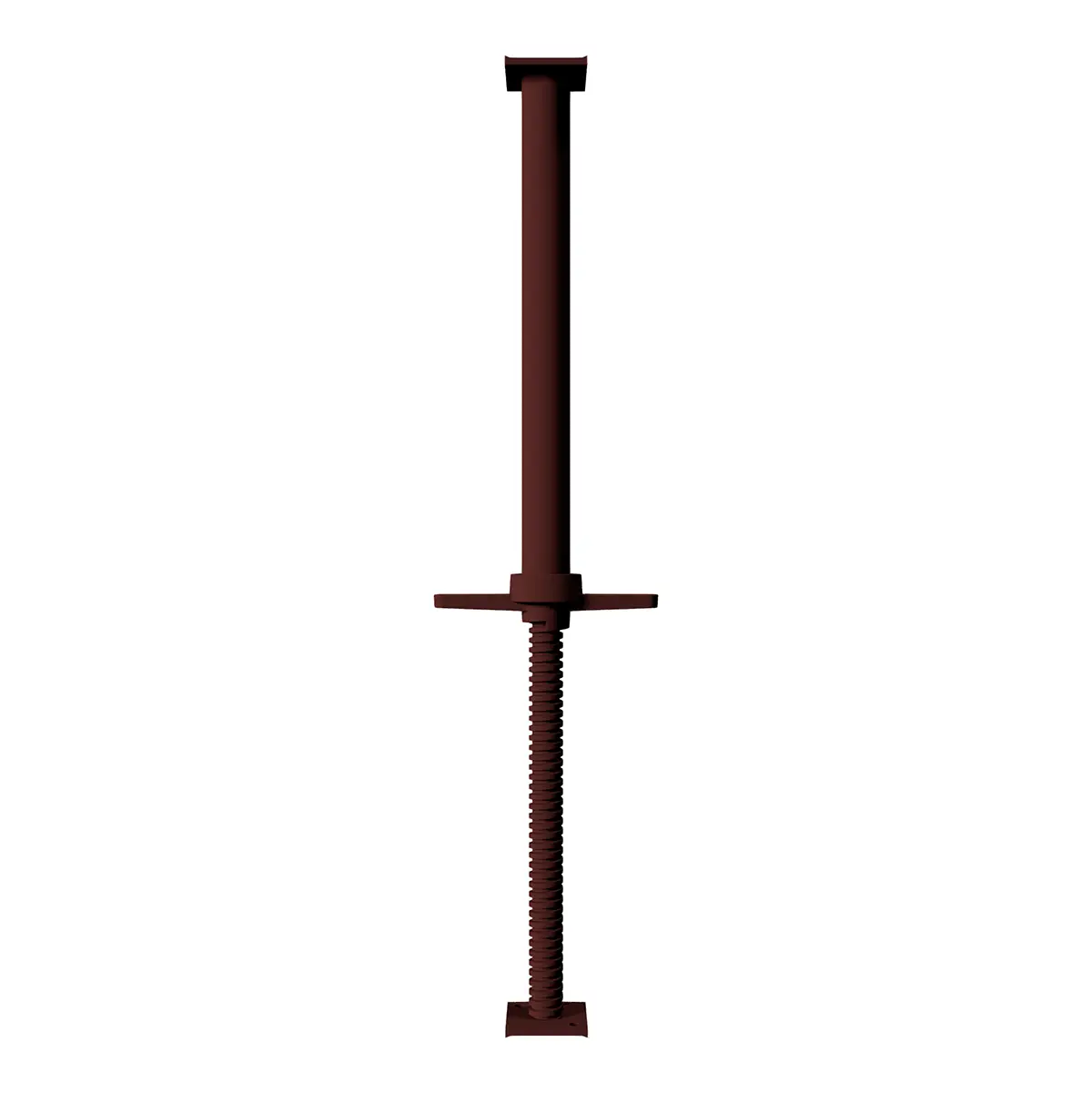

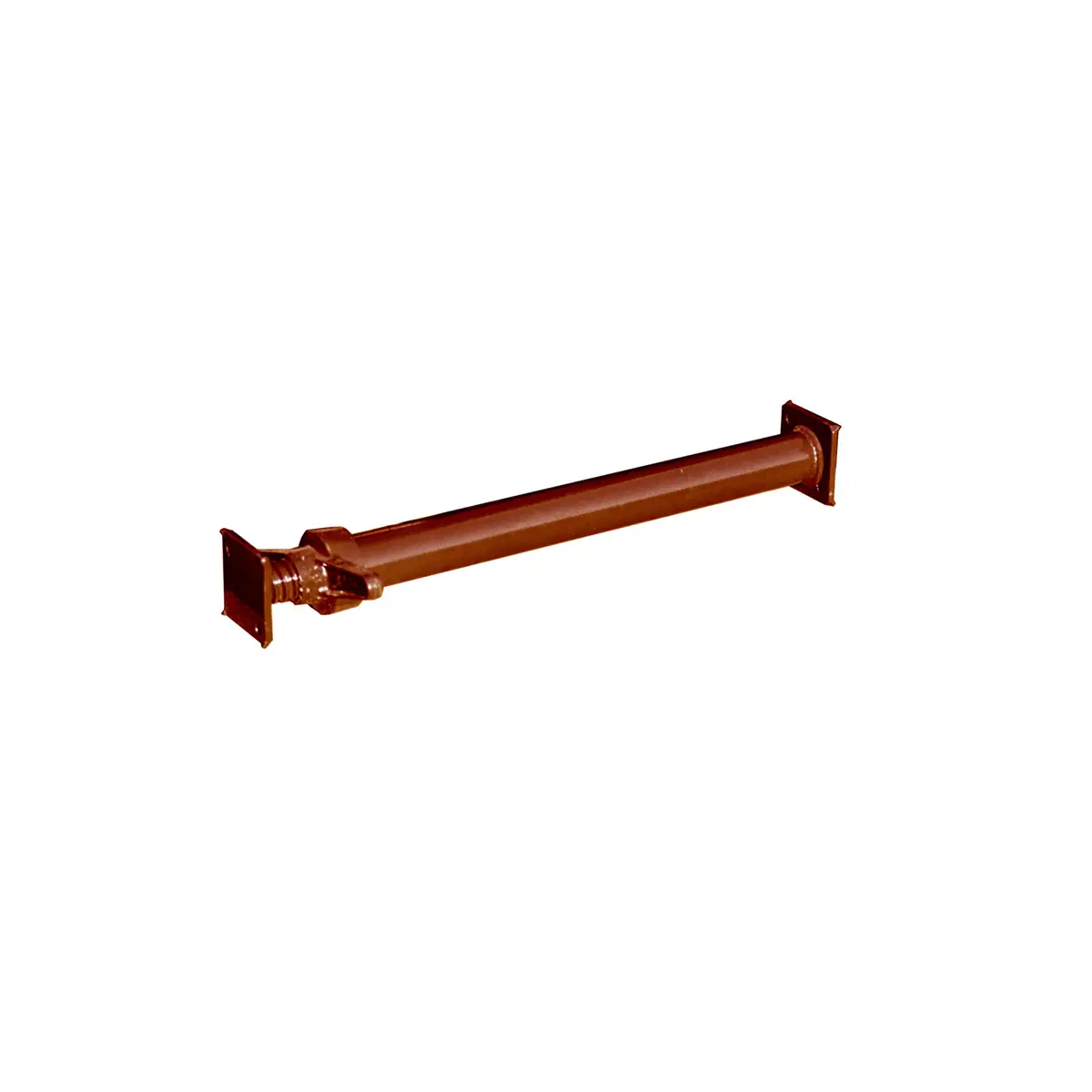

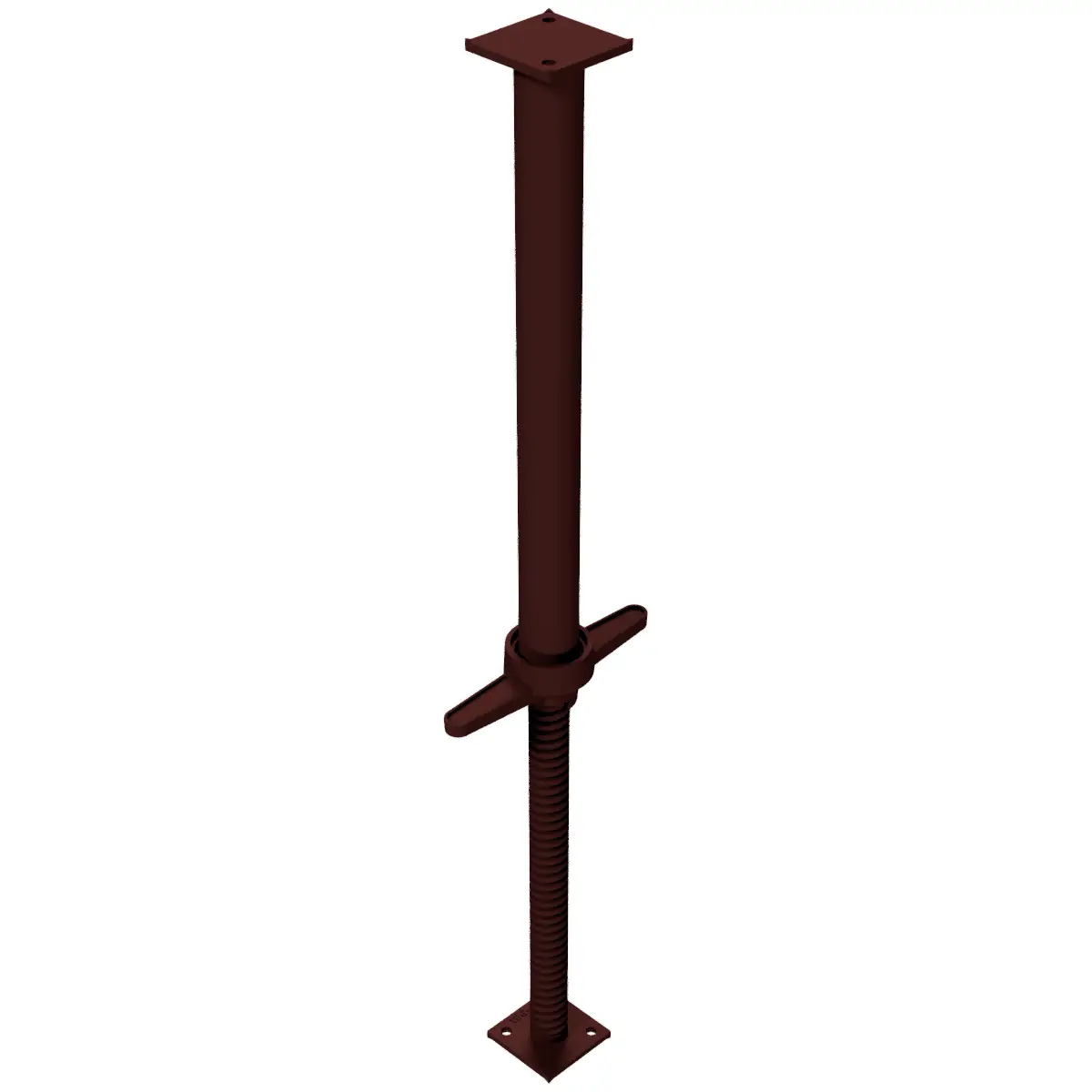

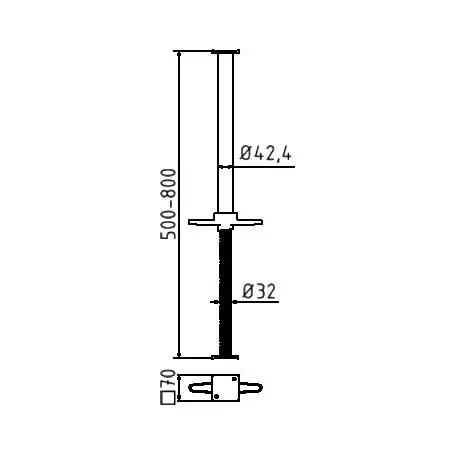

These trench struts are of steel manufacture to TBG-042 standard. Inner spindle is 32mm diameter and the outer is 42mm diameter. End plates are 70mm square with a claw on the corners. Spindle and Tube are firmly connected using a screw thread with a wind out action. Capacities quoted are at maximum extension. For use with timber shoring and other similar horizontal trench shoring applications.
| Weight | N/A |
|---|---|
| Length | NO 1 TRENCH STRUT 32mm (0.5-0.8m) 37 kN, NO 2 TRENCH STRUT 32 mm (0.8-1.1m) 30 kN, NO 3 TRENCH STRUT 32mm (1.1-1.4m) 30 kN, NO 4 TRENCH STRUT 32mm (1.4-1.7m) 27 kN |
