Aluminium Walers

Waler Rail System 2

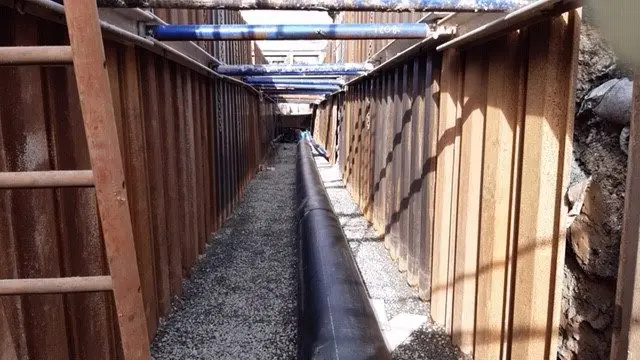

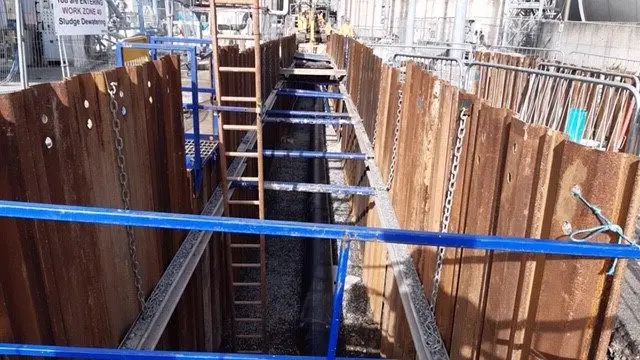

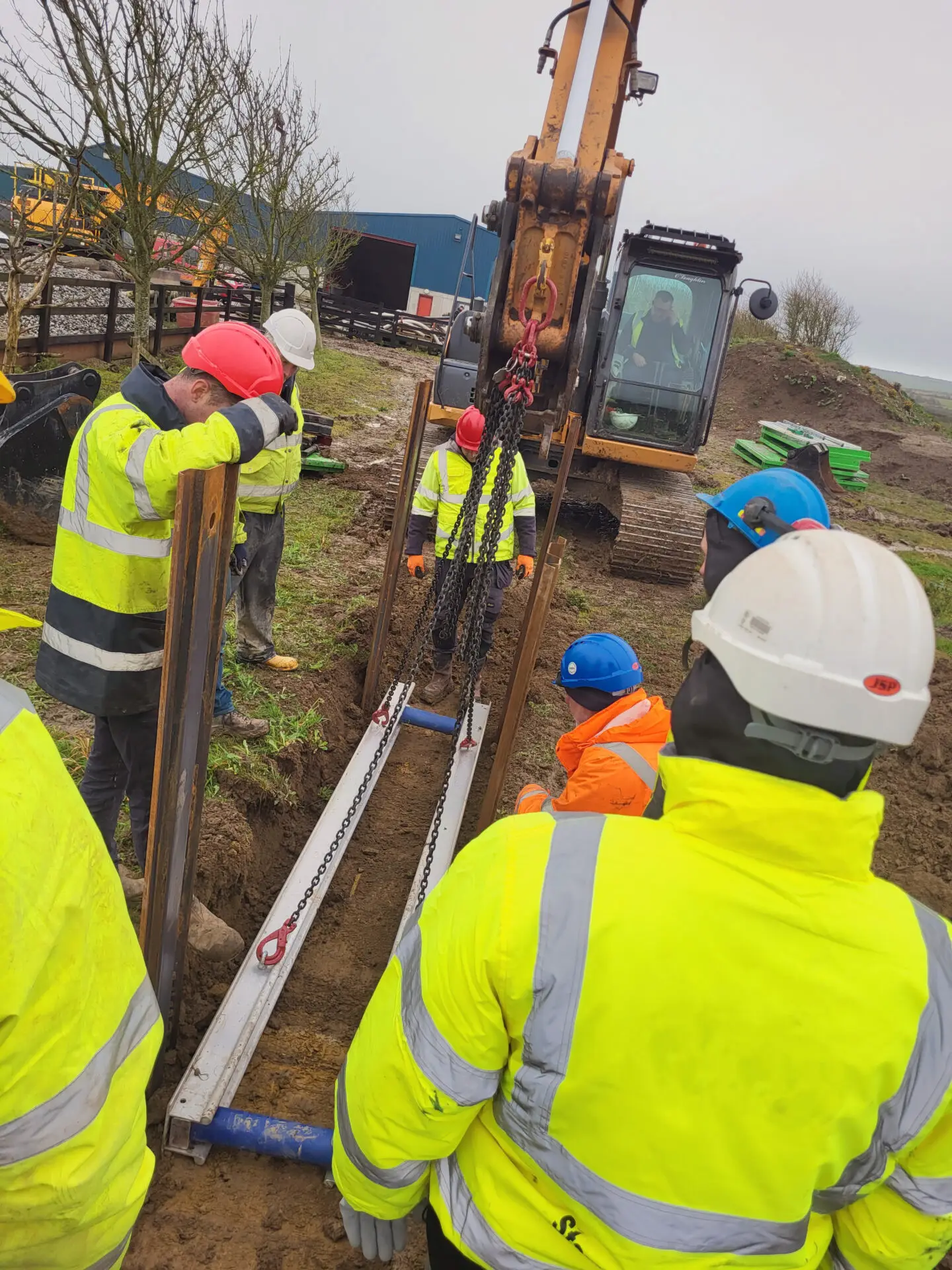

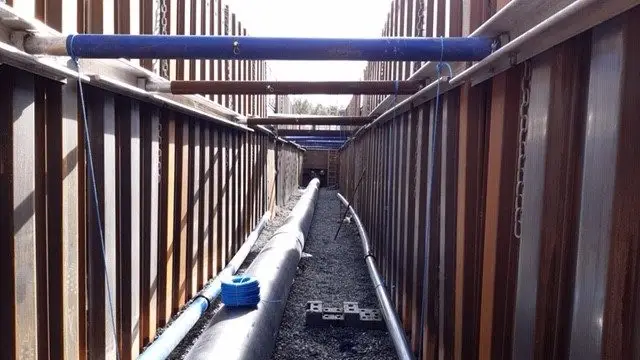

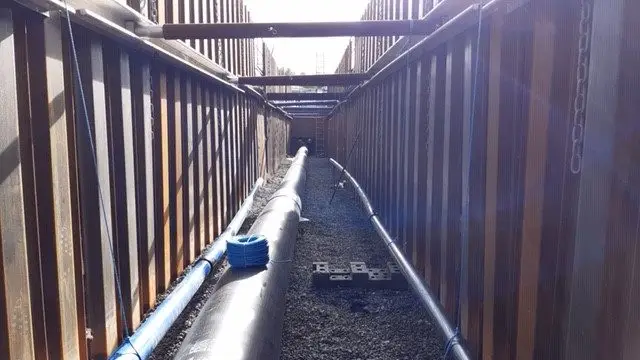

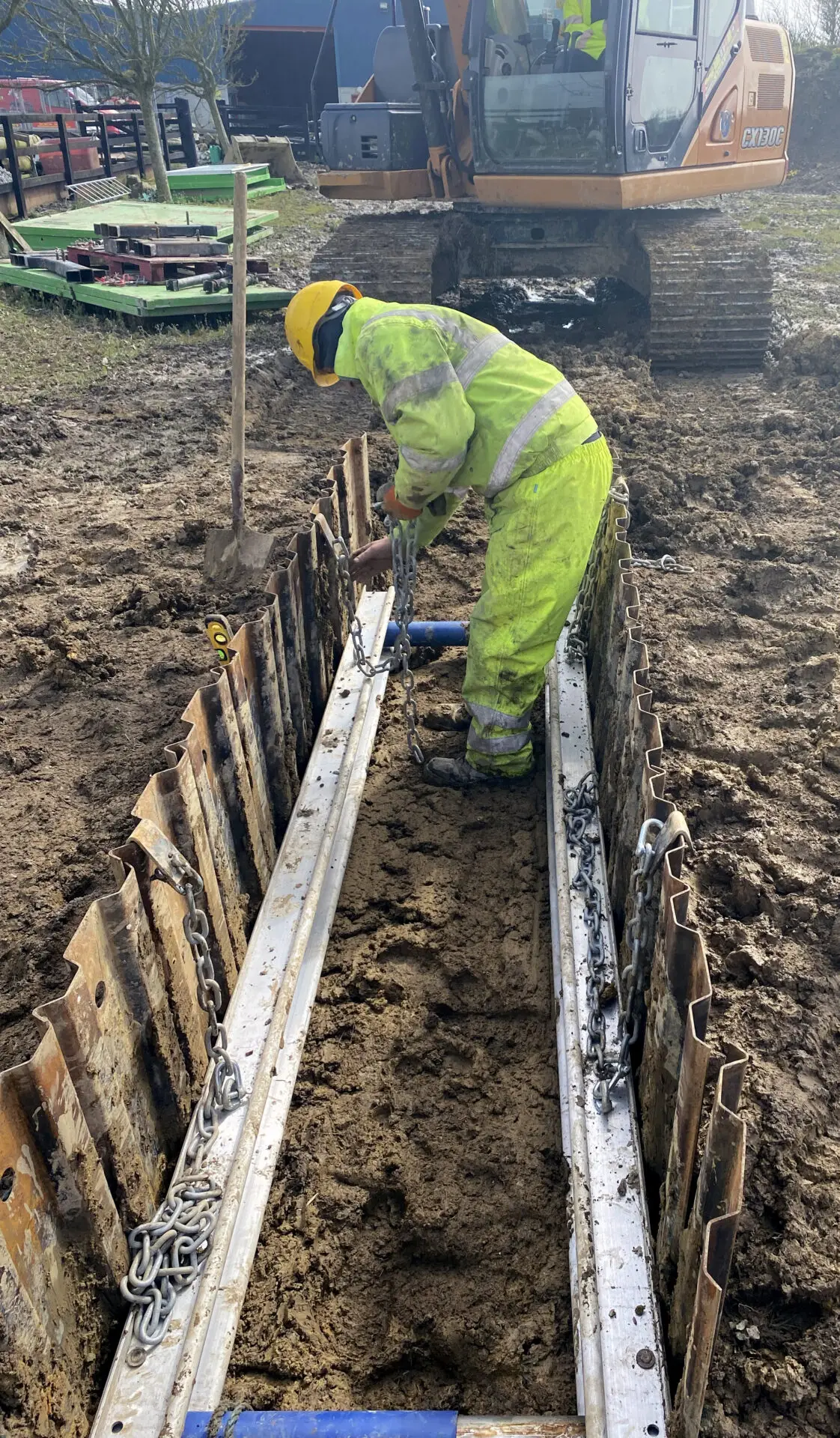

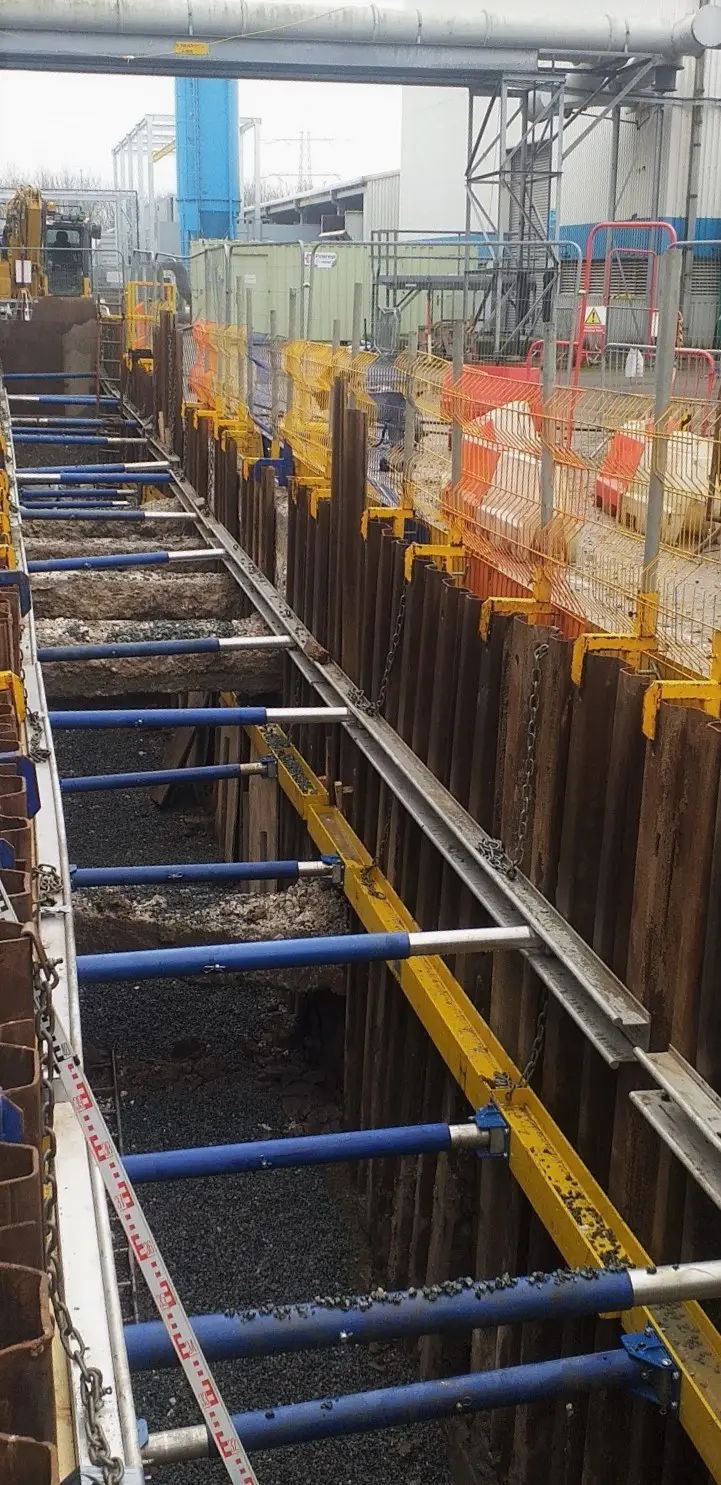

Extruded aluminium waler rails are available in 3m & 5m lengths, typically designed for 2-sided support of trench runs.

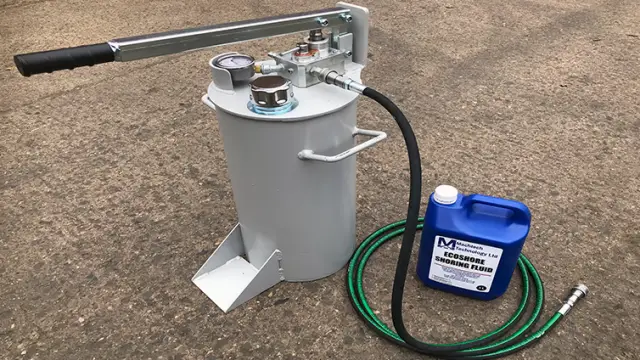

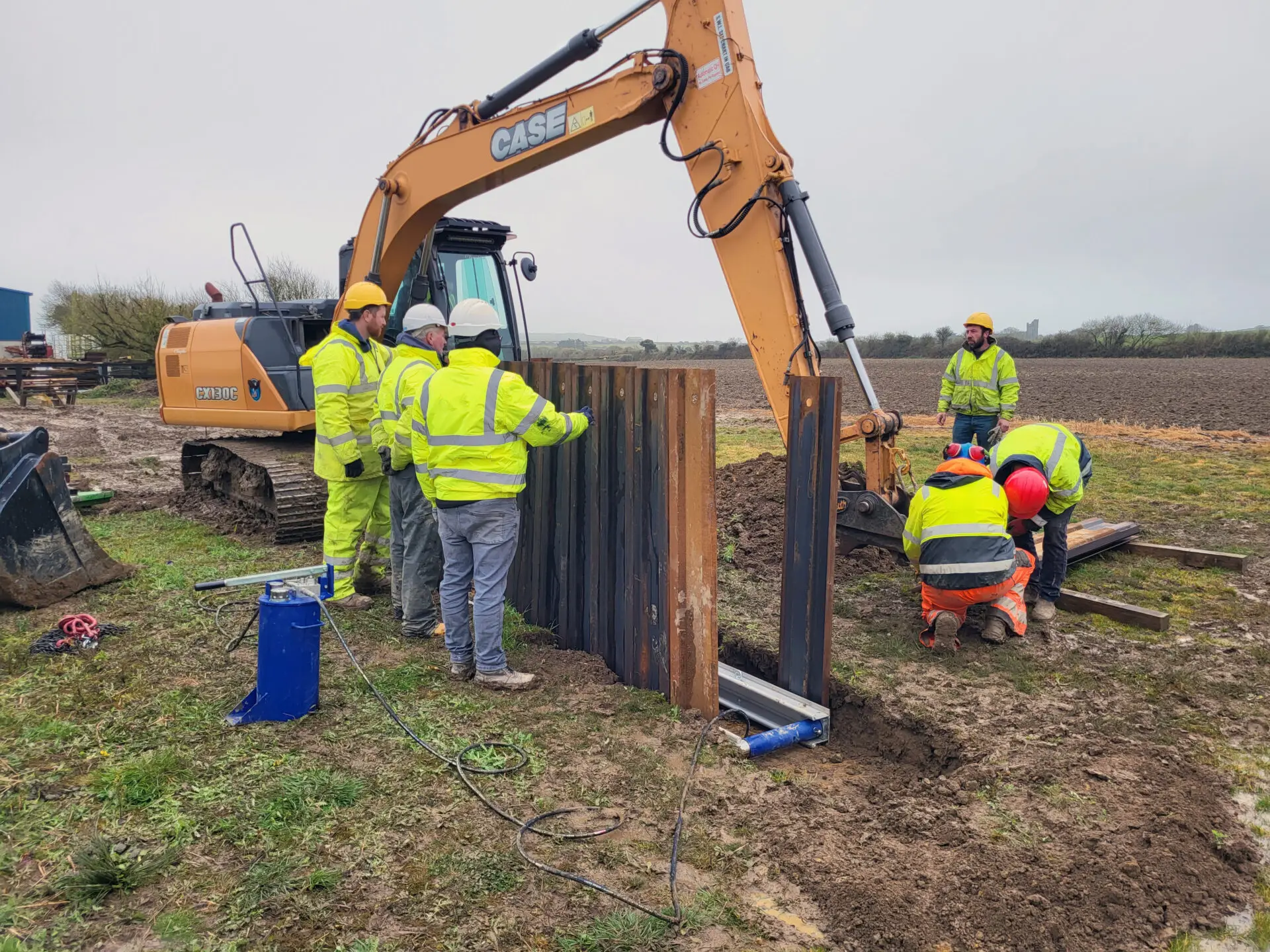

Suitable for light duty applications, simple to assemble, two sided, hydraulic bracing system. Designed to be used with steel trench sheets – ideal for small trenches, for the safe installation of utilites. The walers are compact, easily installed hydraulically-expandable shoring units Struts comprise of single acting hydraulic cylinders, with lock off valves, to achieve trench widths of between 565mm and 3800mm (sheet to sheet).

We stock the cylinders below:

A Cylinder (range 530mm – 830mm)
B Cylinder (range 780mm – 1310mm)
C Cylinder ( range 1260mm – 2010mm)

These are available from stock at our Dunboyne Depot for Hire or Sale, pricing on request.

AVAILABLE FOR HIRE

Or contact us by email
sales@westportequipment.com

TECHNICAL INFORMATION

3.0M ALUMINIUM WALER

Length (mm): 3000
Width (mm): 100
Max Length between Struts (mm): 2410
Weight (kg): 36
Sheet to Sheet Width Range (mm): 565 – 3800

4.0M ALUMINIUM WALER

Length (mm):4000
Width (mm): 100
Max Length between Struts (mm):3310
Weight (kg): 47
Sheet to Sheet Width Range (mm):565 – 3800
