It can be used in a variety of applications:
Manufactured in accordance with:
Technical delivery conditions in accordance with EN 10249-1. Tolerances in accordance with EN 10249-2
Steel qualities:
S 235, S 275, S 355 or Equivalent with 3.1 Certificate in accordance with EN 10204.
Standard availability:
Lengths up to 24.000 mm, longer lengths on request.

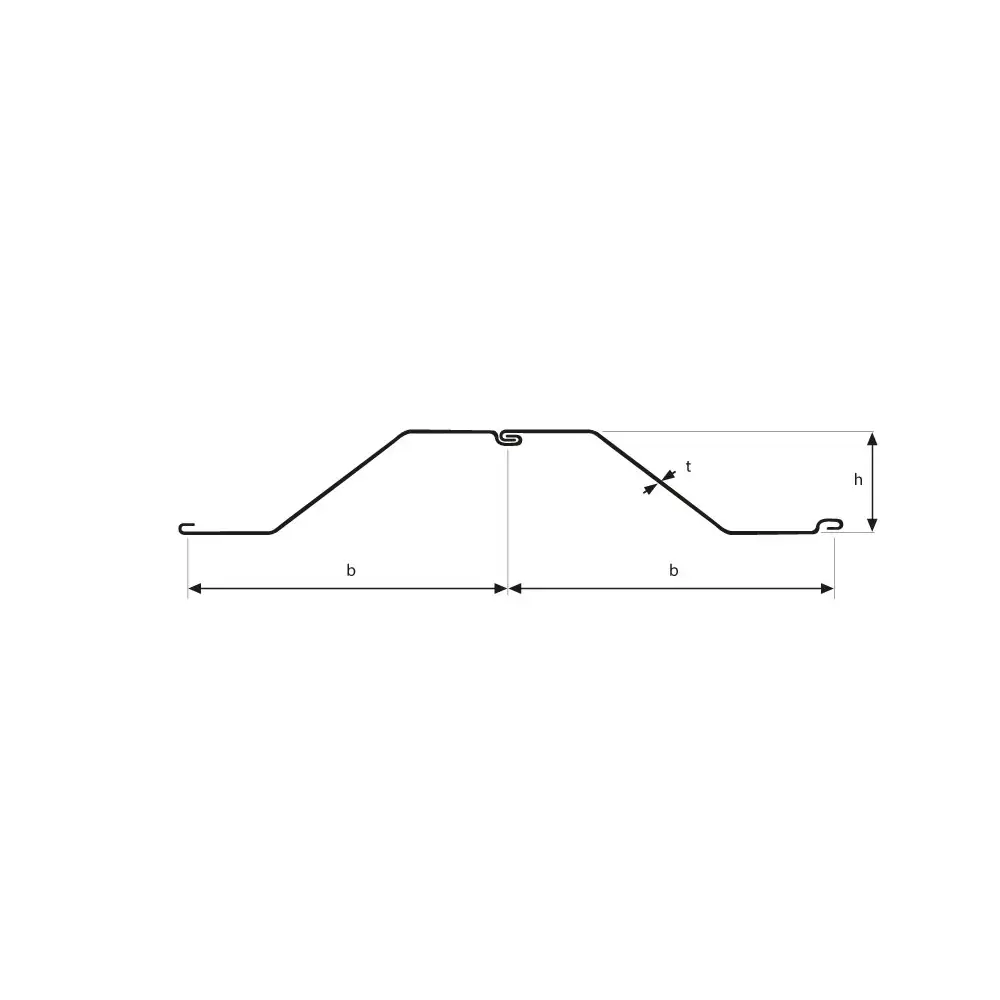

| Type | Wy cm3/m | Ly cm4/m | Width mm | Height mm | Thickness mm | Weight kg/m | Weight kg/m2 | Coating Area m2/m2 |
|---|---|---|---|---|---|---|---|---|
| MKZ 785-5 | 605 | 8.395 | 785 | 276 | 5,0 | 41,9 | 53,4 | 2,52 |
| MKZ 785-6 | 724 | 10.053 | 785 | 277 | 6,0 | 50,4 | 64,2 | 2,52 |
| MKZ 785-7 | 836 | 11.657 | 785 | 278 | 7,0 | 58,4 | 74,4 | 2,52 |
| MKZ 785-8 | 951 | 13.302 | 785 | 279 | 8,0 | 66,6 | 84,8 | 2,52 |
| MKZ 785-9 | 1.067 | 14.944 | 785 | 280 | 9,0 | 74,8 | 95,3 | 2,52 |
