Single Slide Rail Series 790

Westport S790

The SBH single slide rail trench shoring system provides a single guide for the installation of trench shoring plates which allows a maximum trench depth of 3.80 m deep. Similar to our other trench shoring systems the compatible rolling struts can be used to offer a wide range of applications.

Single Slide Rail shoring is used primarily in medium sized trench constructions where high strut clearances are required. For example when laying pipes the rolling struts can be positioned at different heights to provide suitable clearance below for easy installation even of oversized pipes. Subject to ground conditions larger strut clearance heights can also be realised and the SBH patented adjustable clamping device also offers the potential for strut-free trench shoring pits.

Pits and trench ends can also be formed by incorporating the corner slide rails and trench further shoring plates.

Please contact us for further information or to make use of our in-house engineering design services

AVAILABLE FOR HIRE

Or contact us by email
sales@westportequipment.com

TECHNICAL INFORMATION

Recommended installation depth
up to 3.80 m

Trench
width 1.68 – 6.68 m

Working
width 1.24 – 6.24 m

Pipe passage height (hc )
2.46 m

Mobile or crawler excavators:
18.0 – 30.0 t

DOWNLOADS

Here we offer you further information about our products.

MAKE A HIRE ENQUIRY

Please submit an enquiry below. One of our team will contact you to discuss your requirements.

Please note: You must have an account with Westport Equipment to hire this equipment.

* = required fields

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

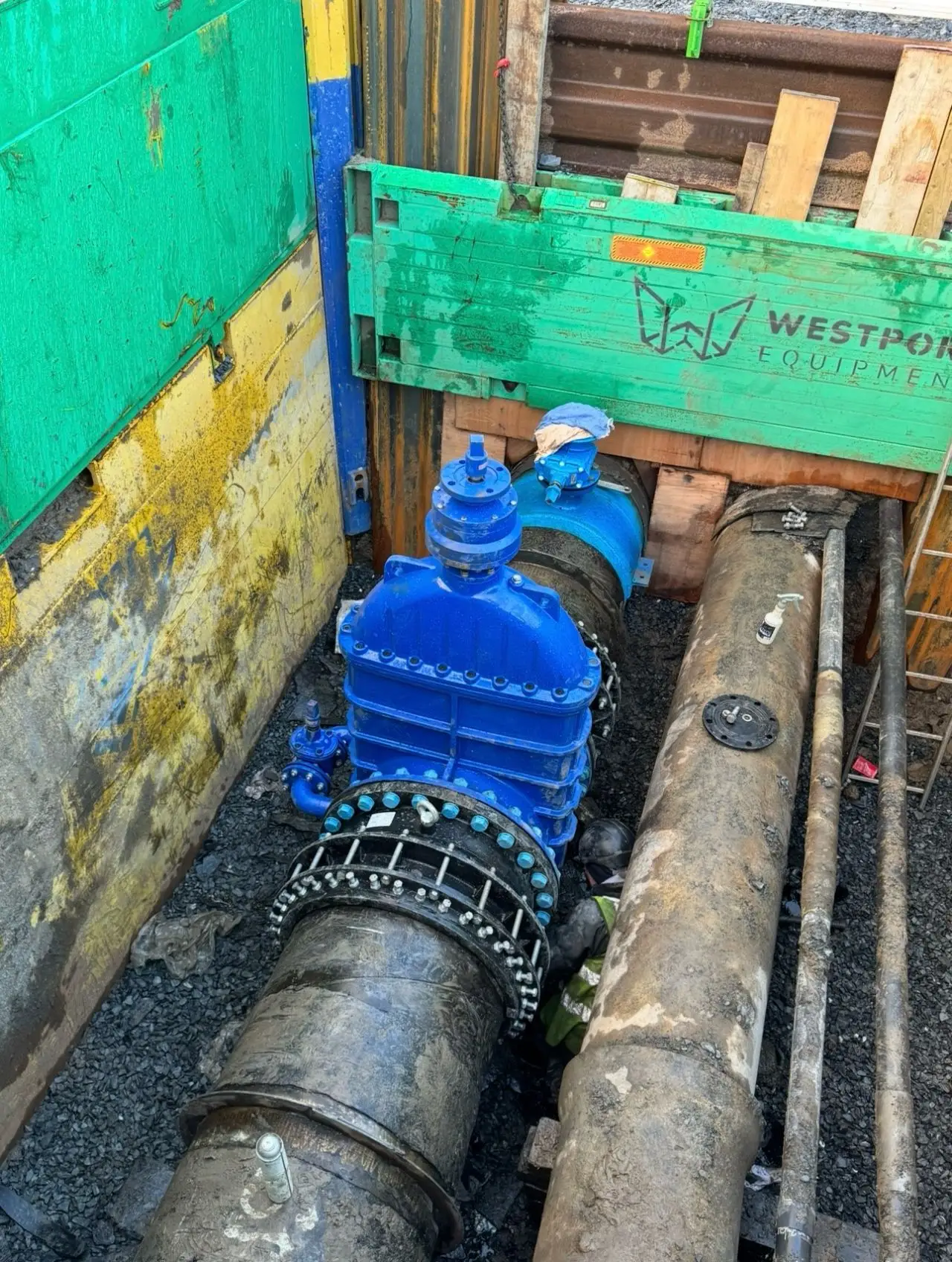

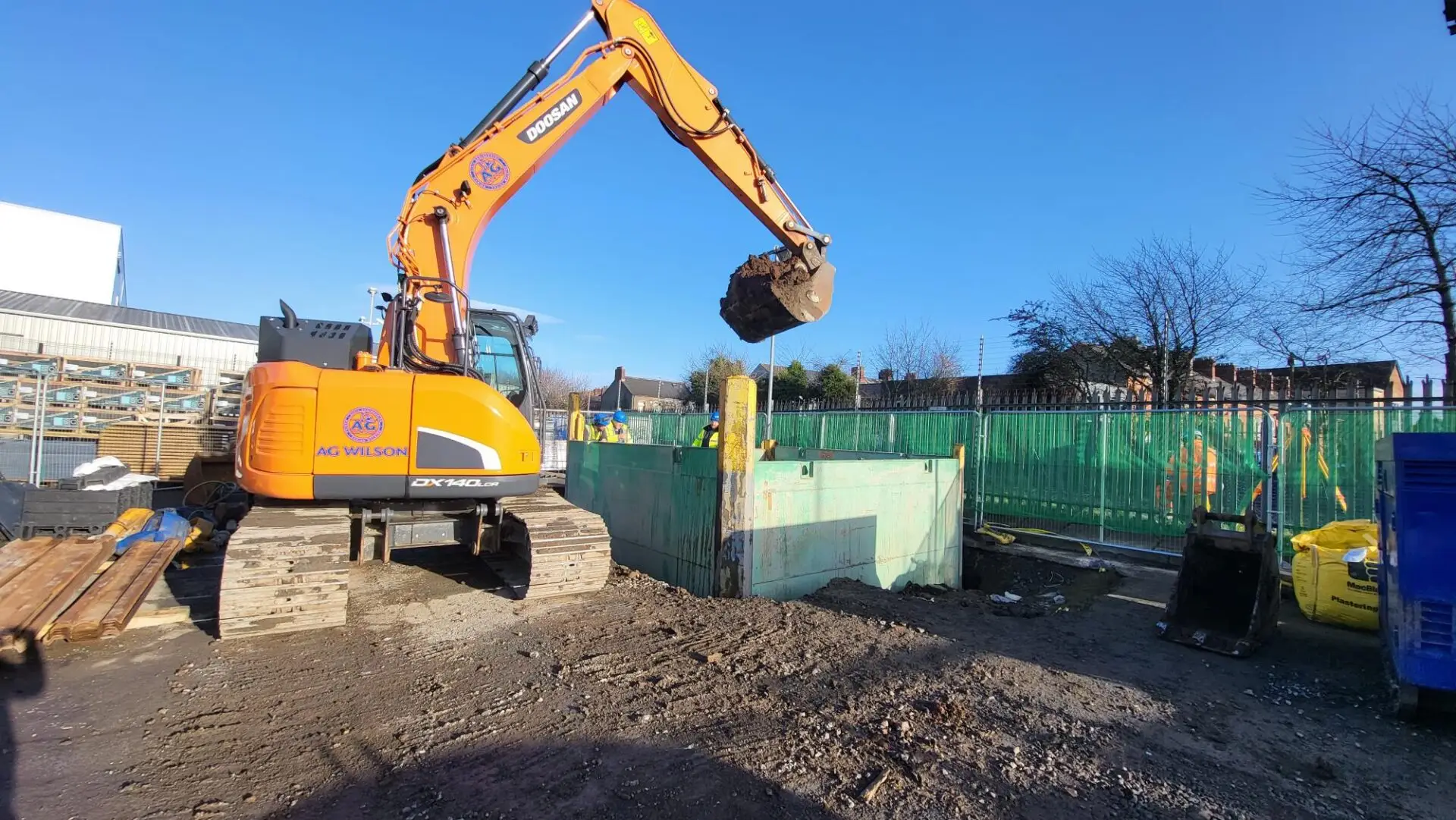

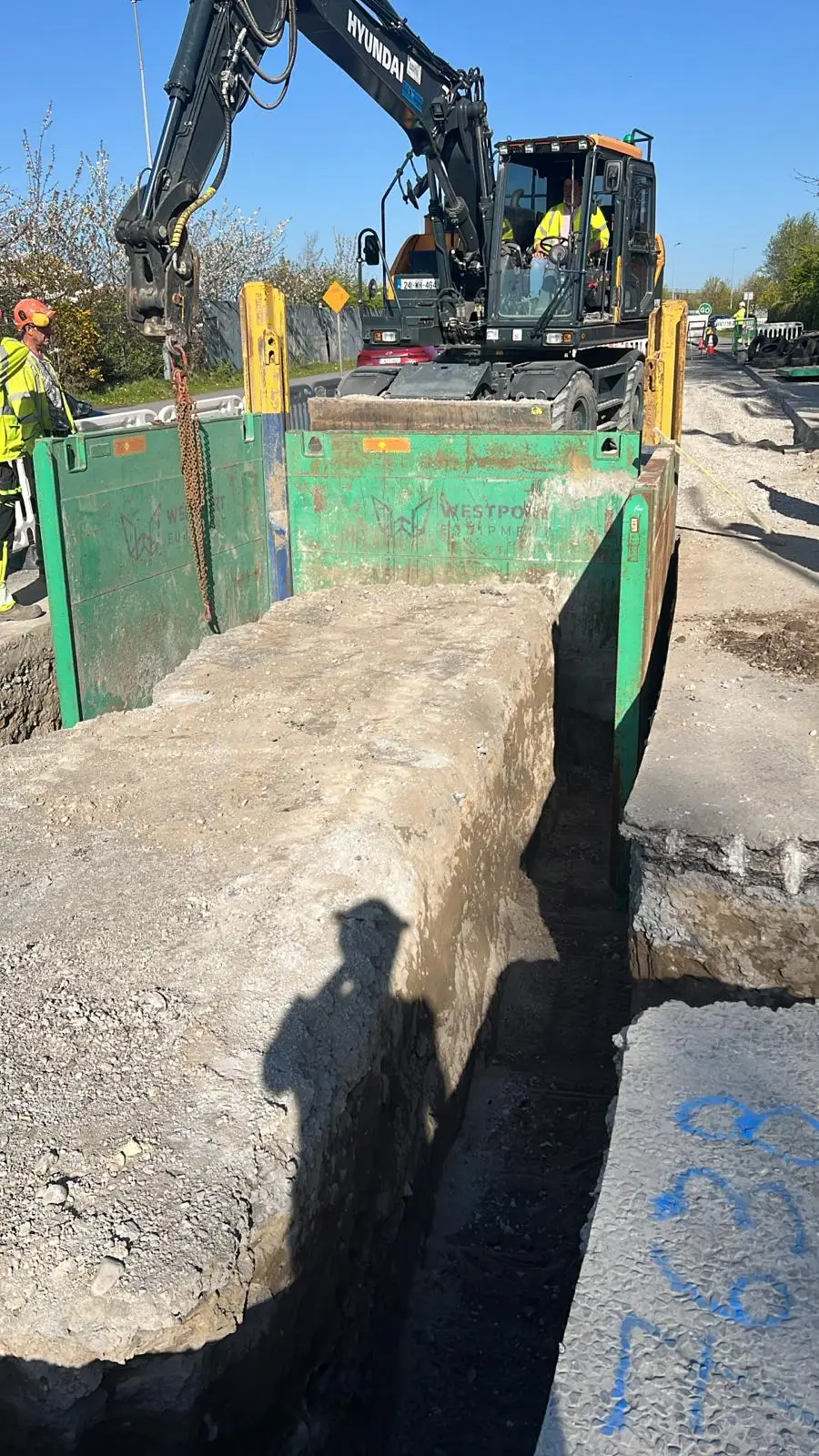

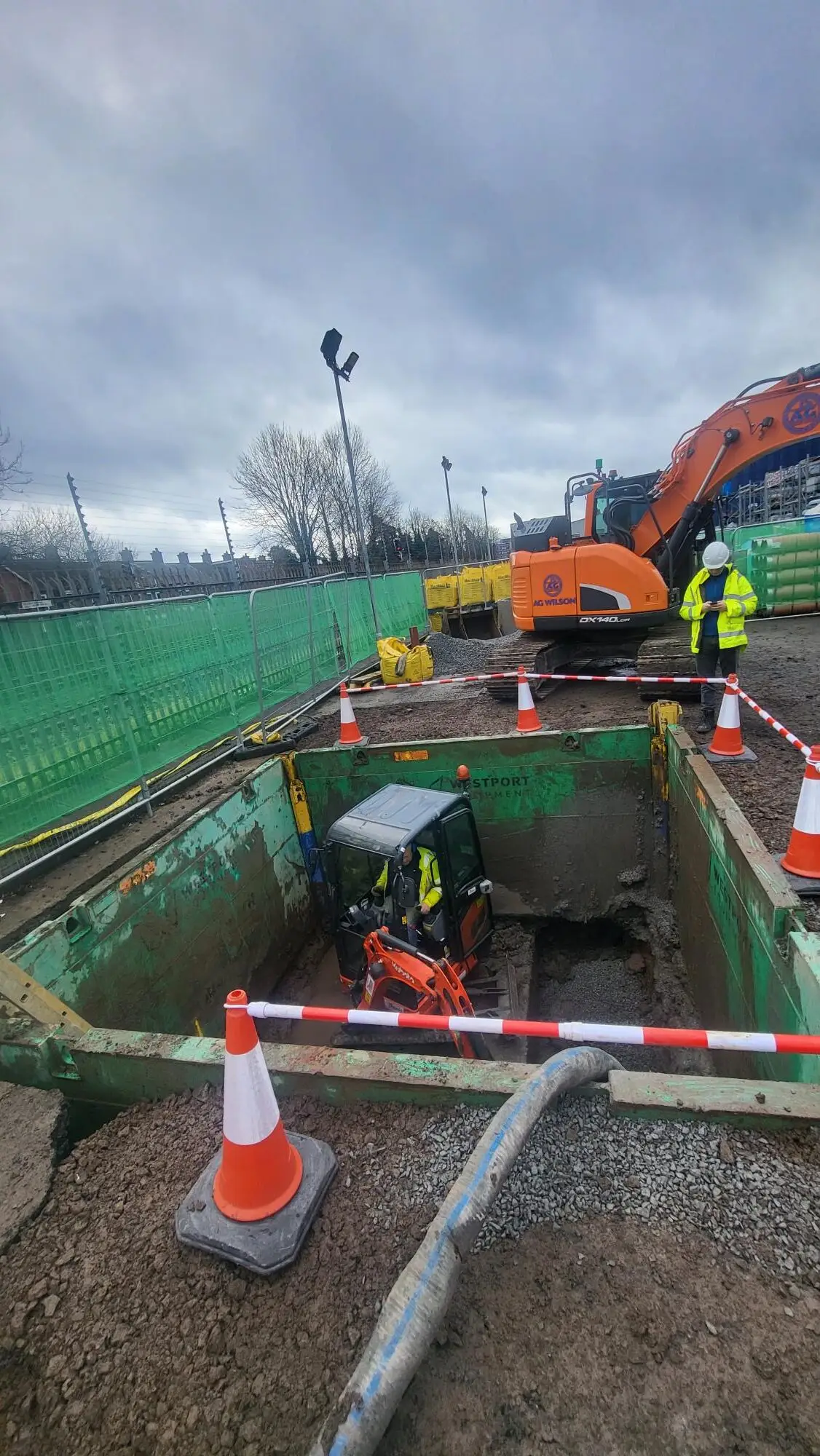

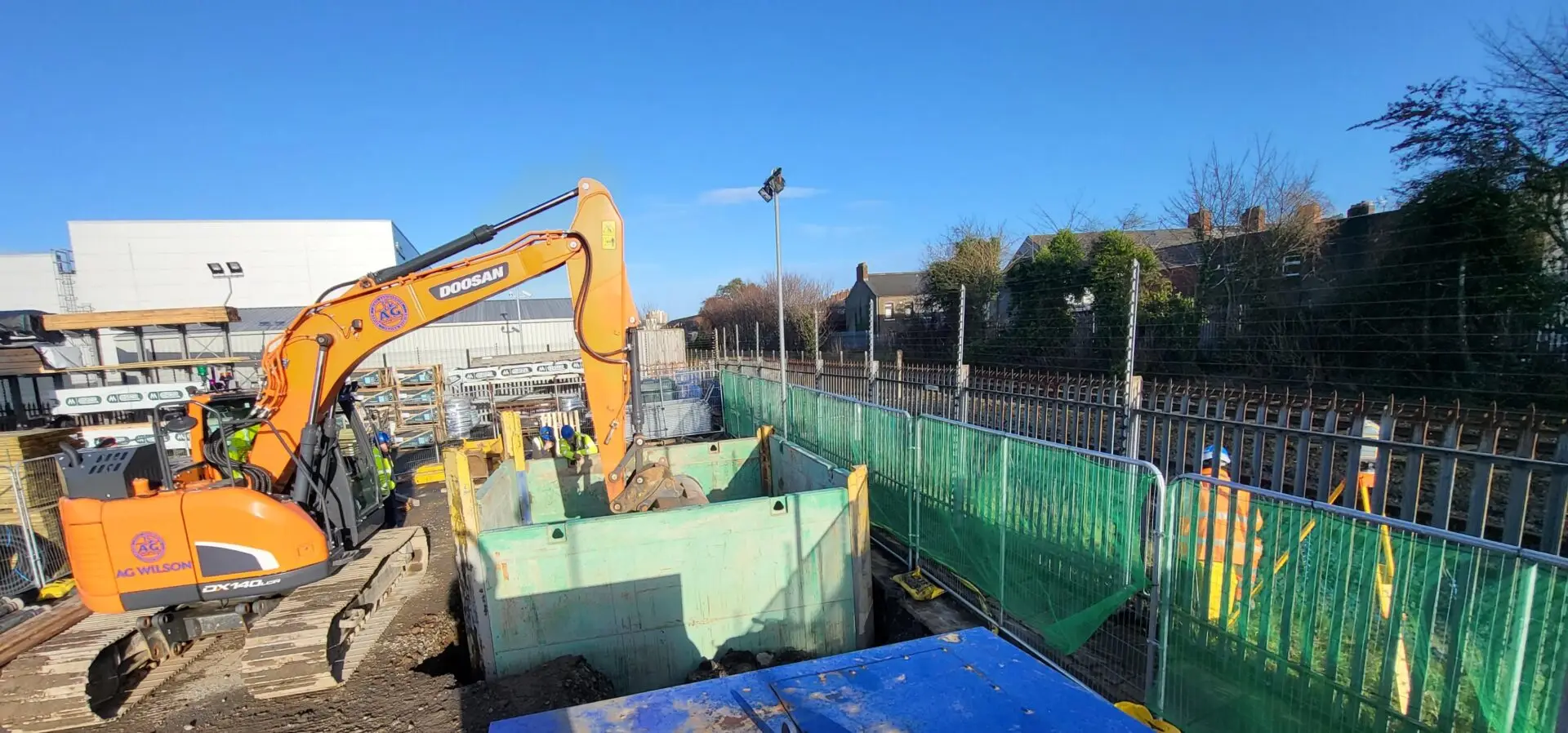

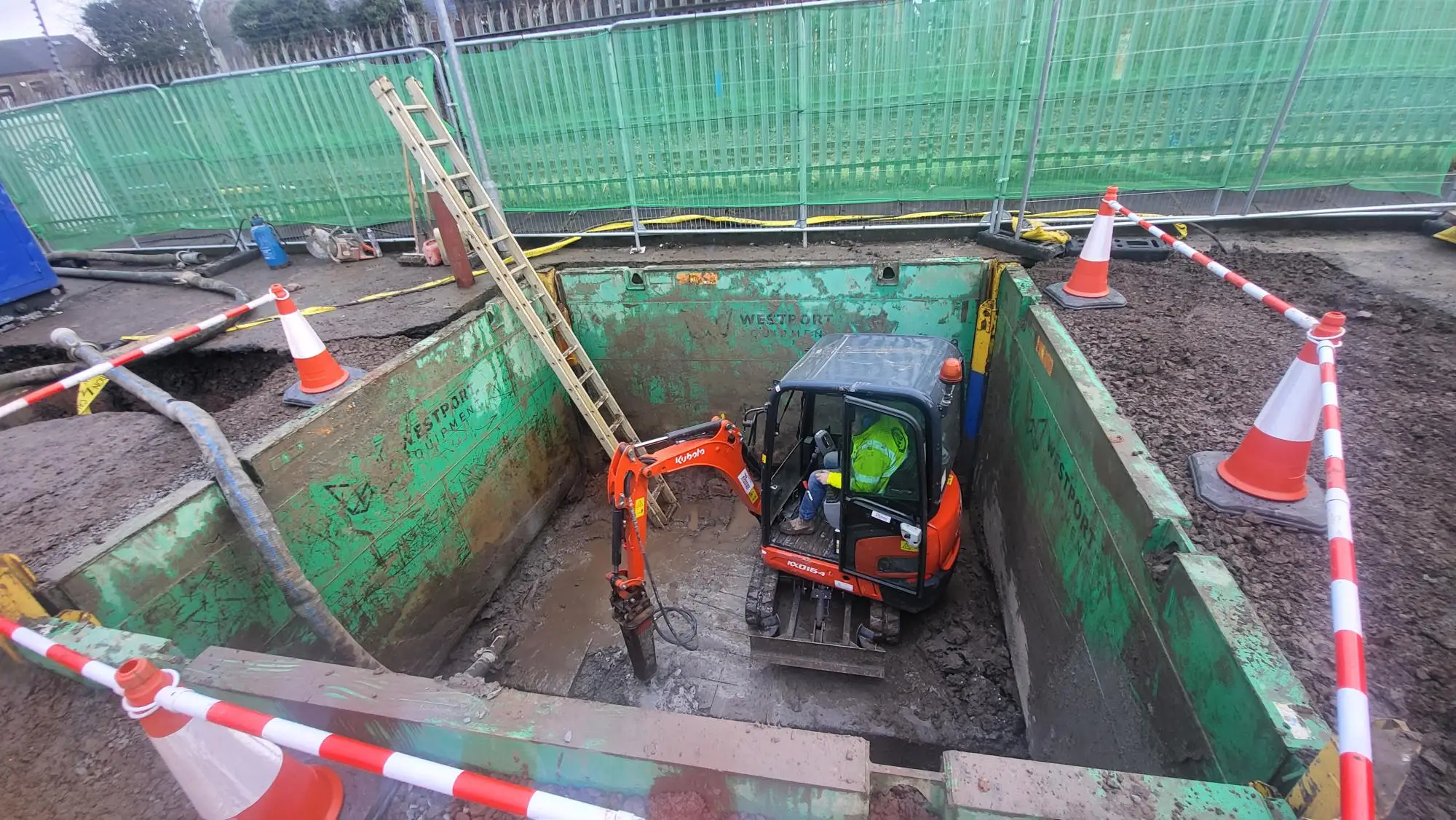

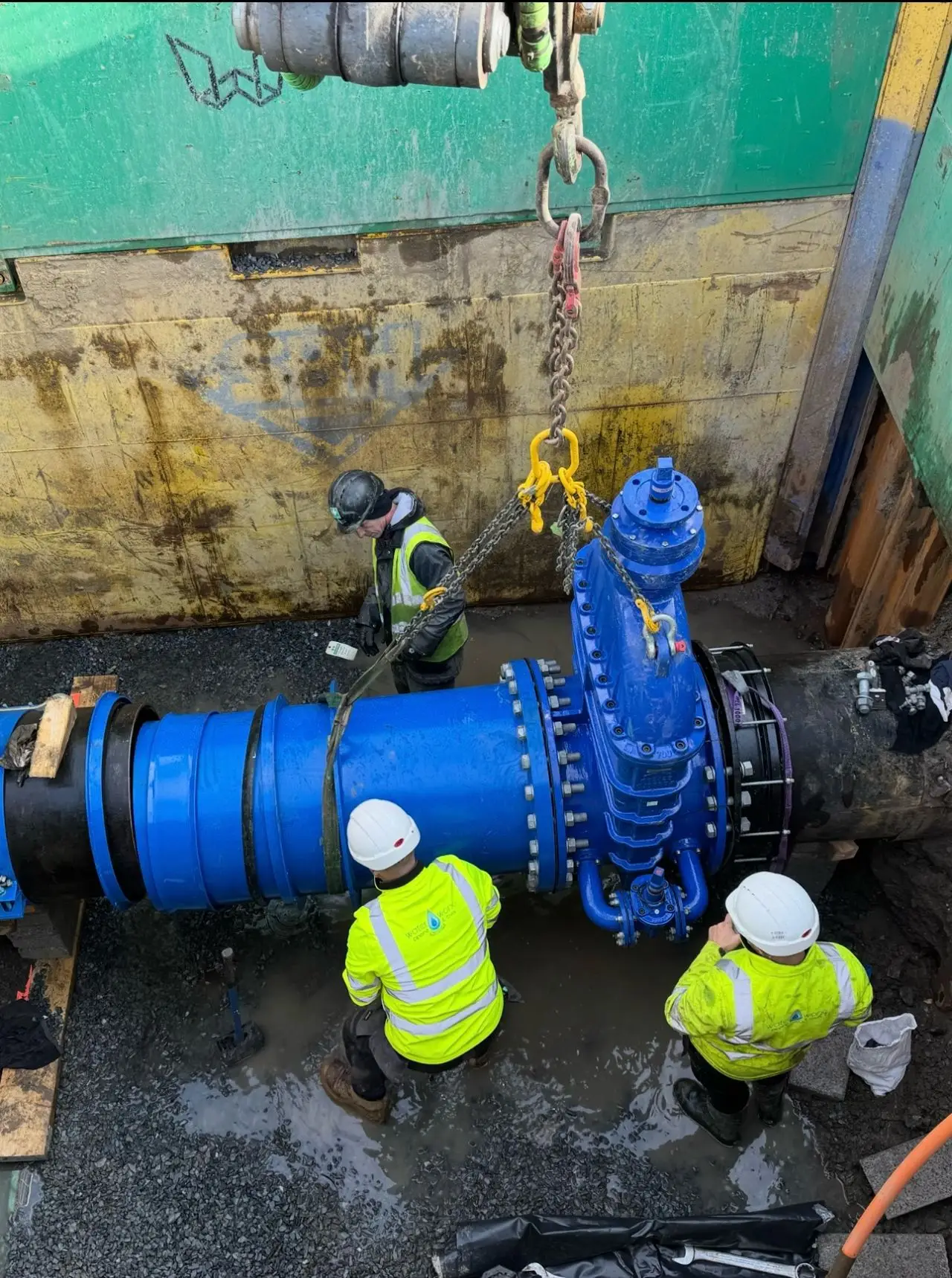

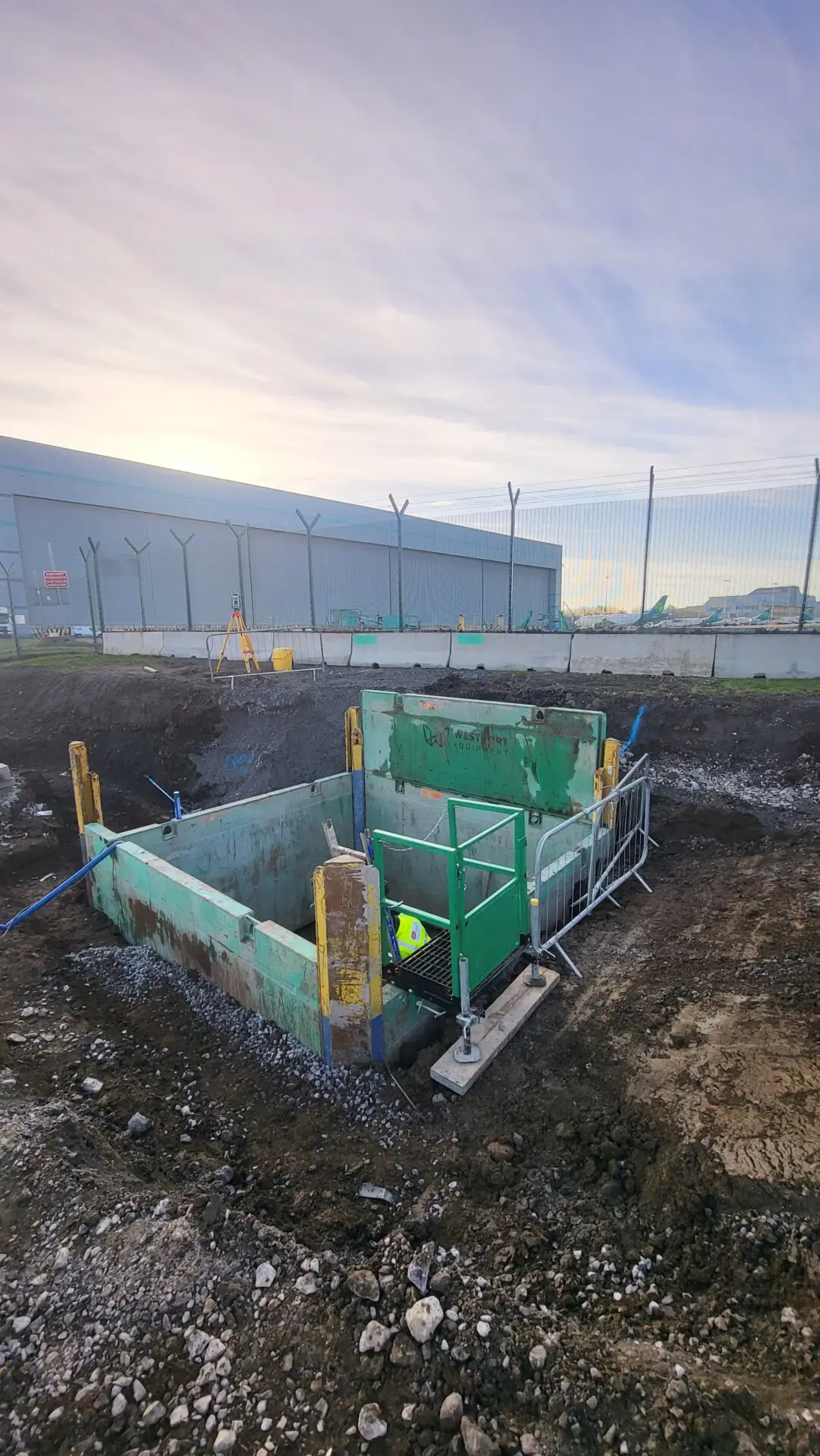

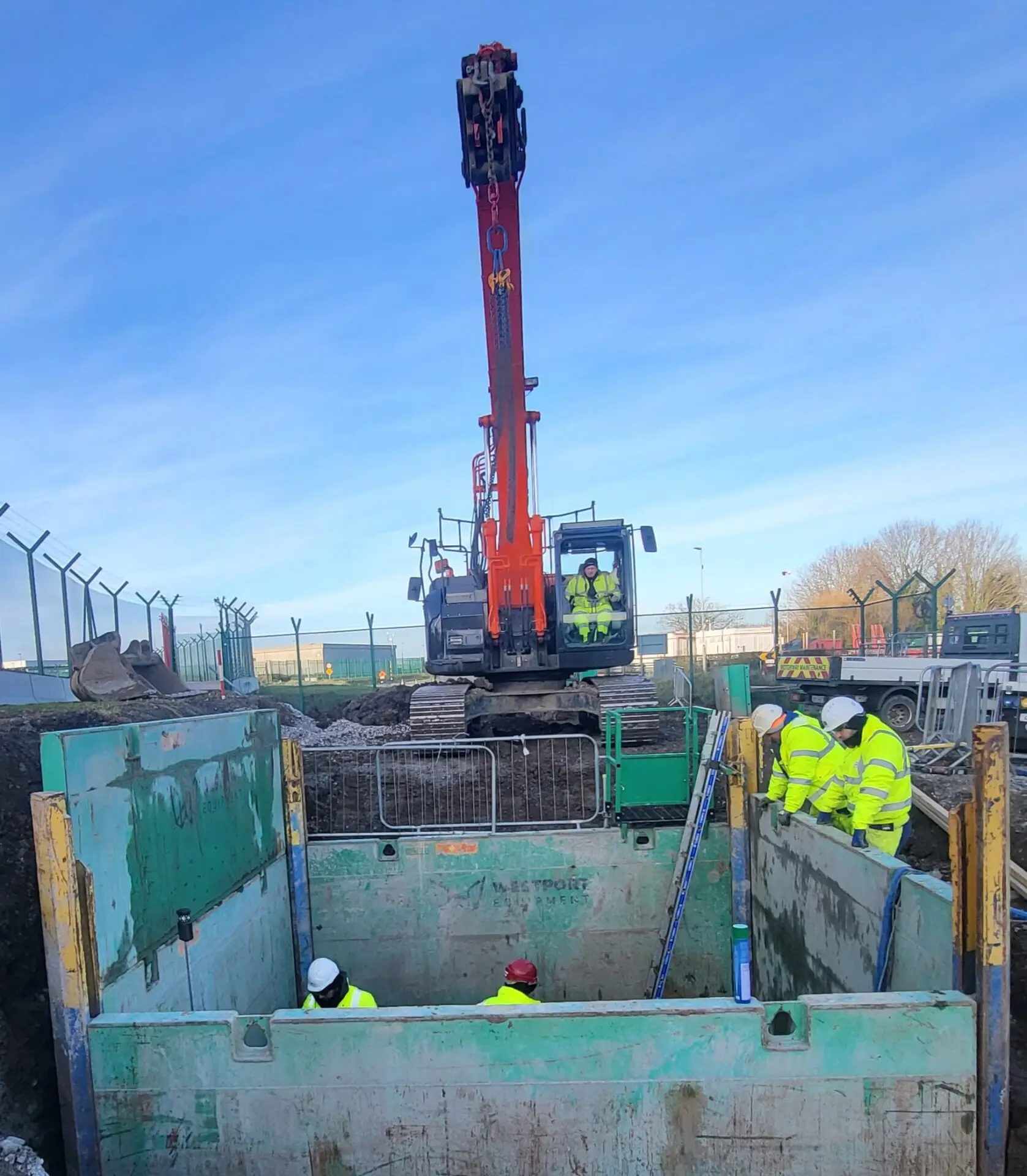

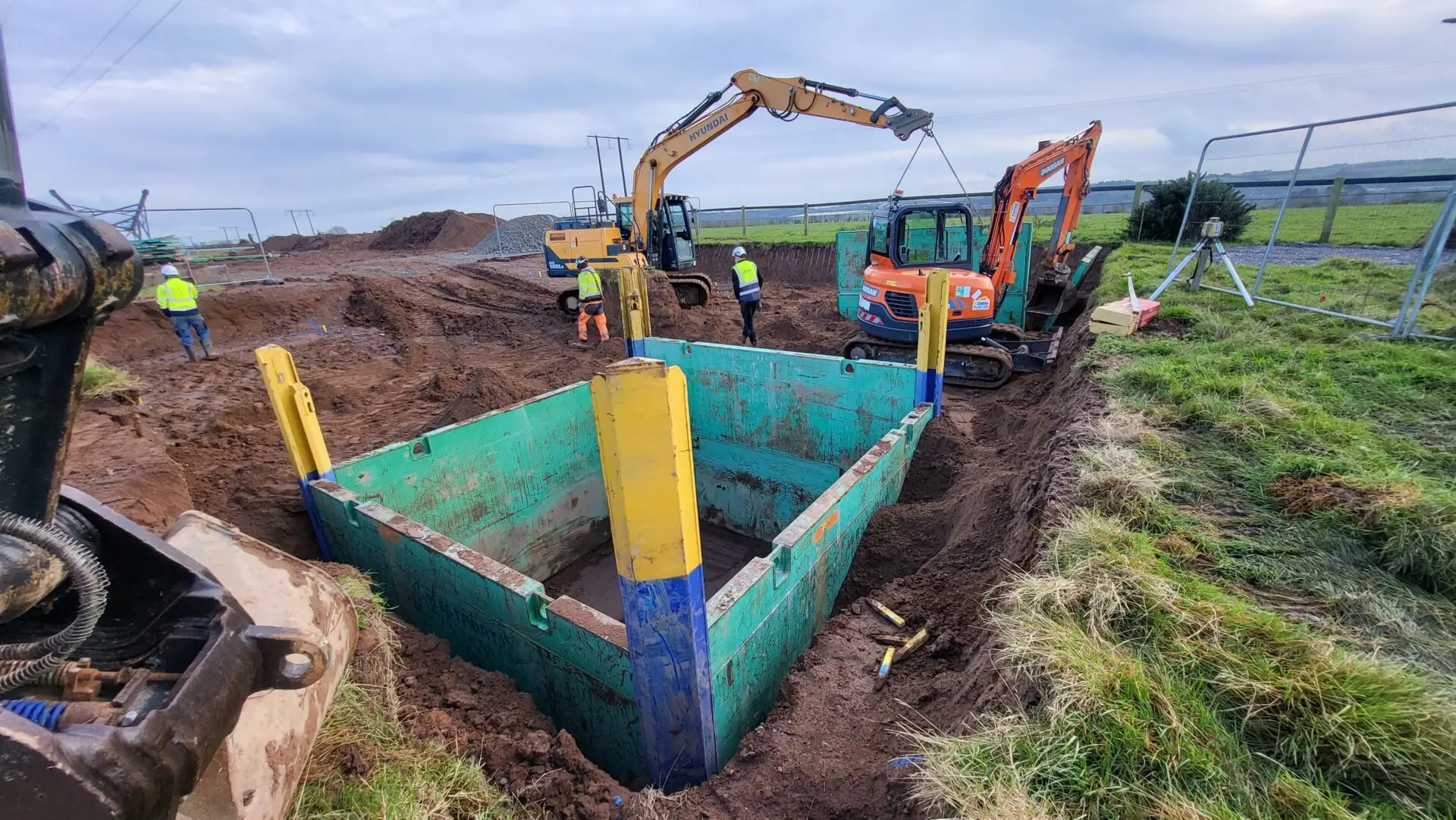

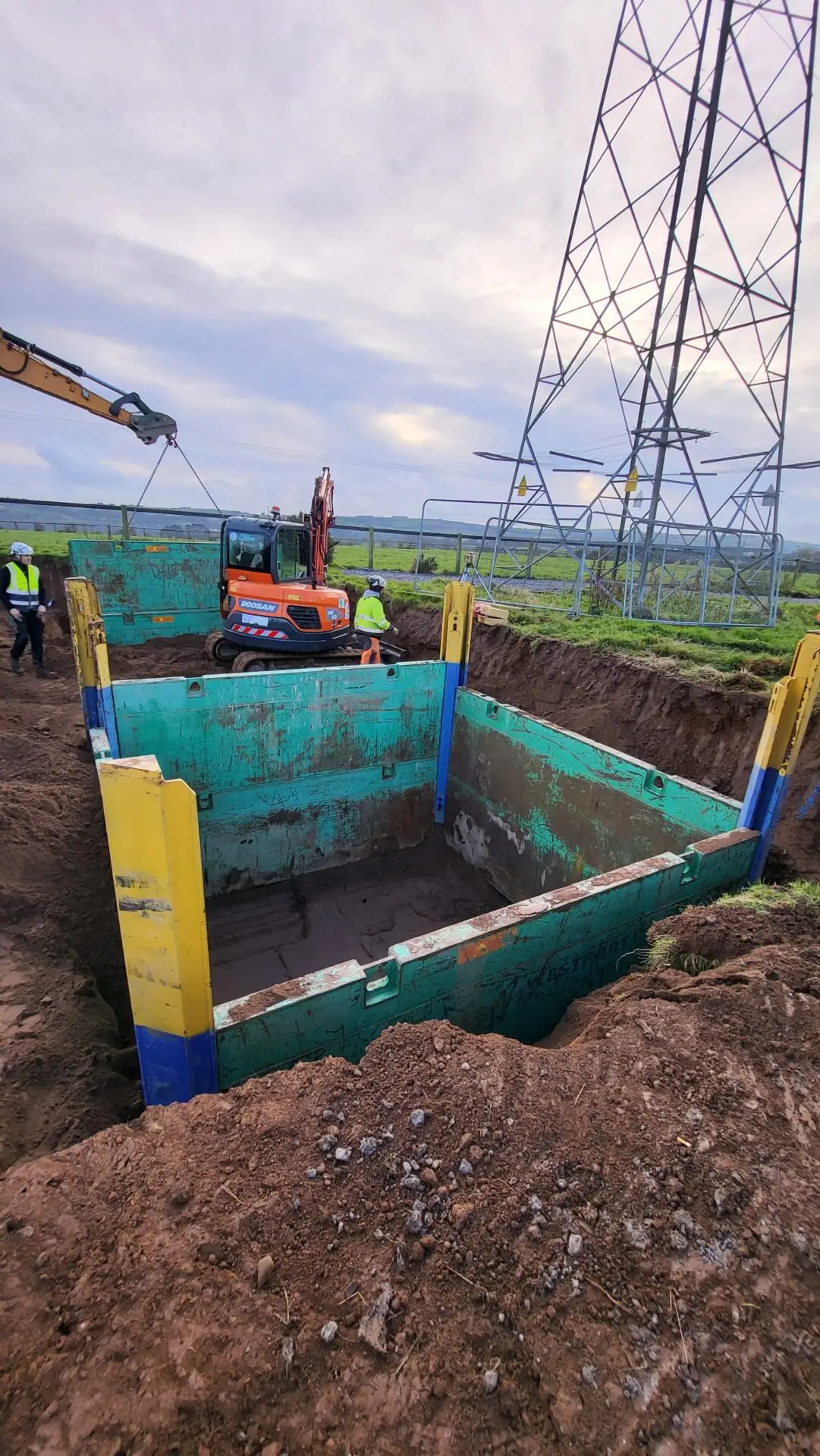

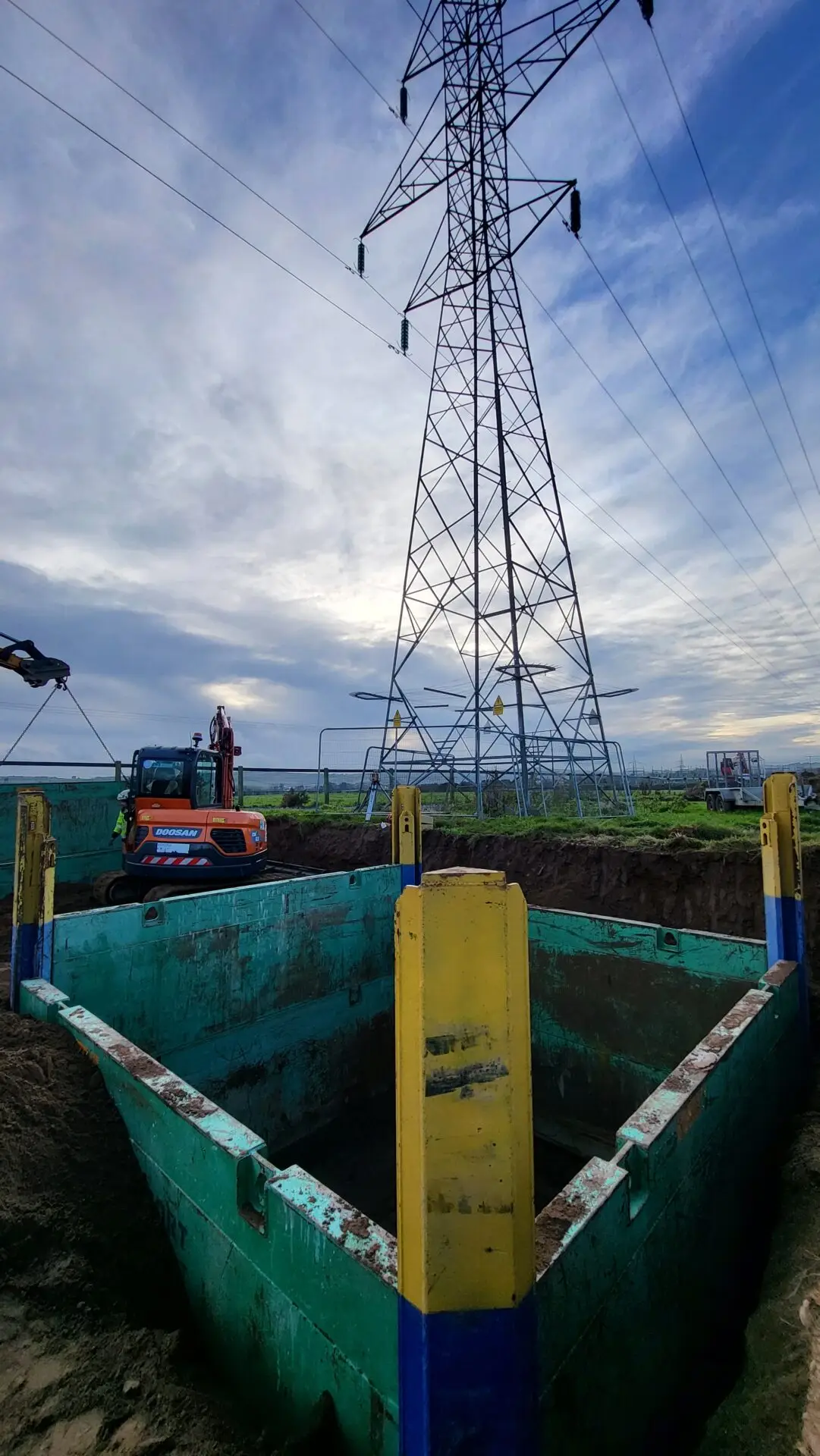

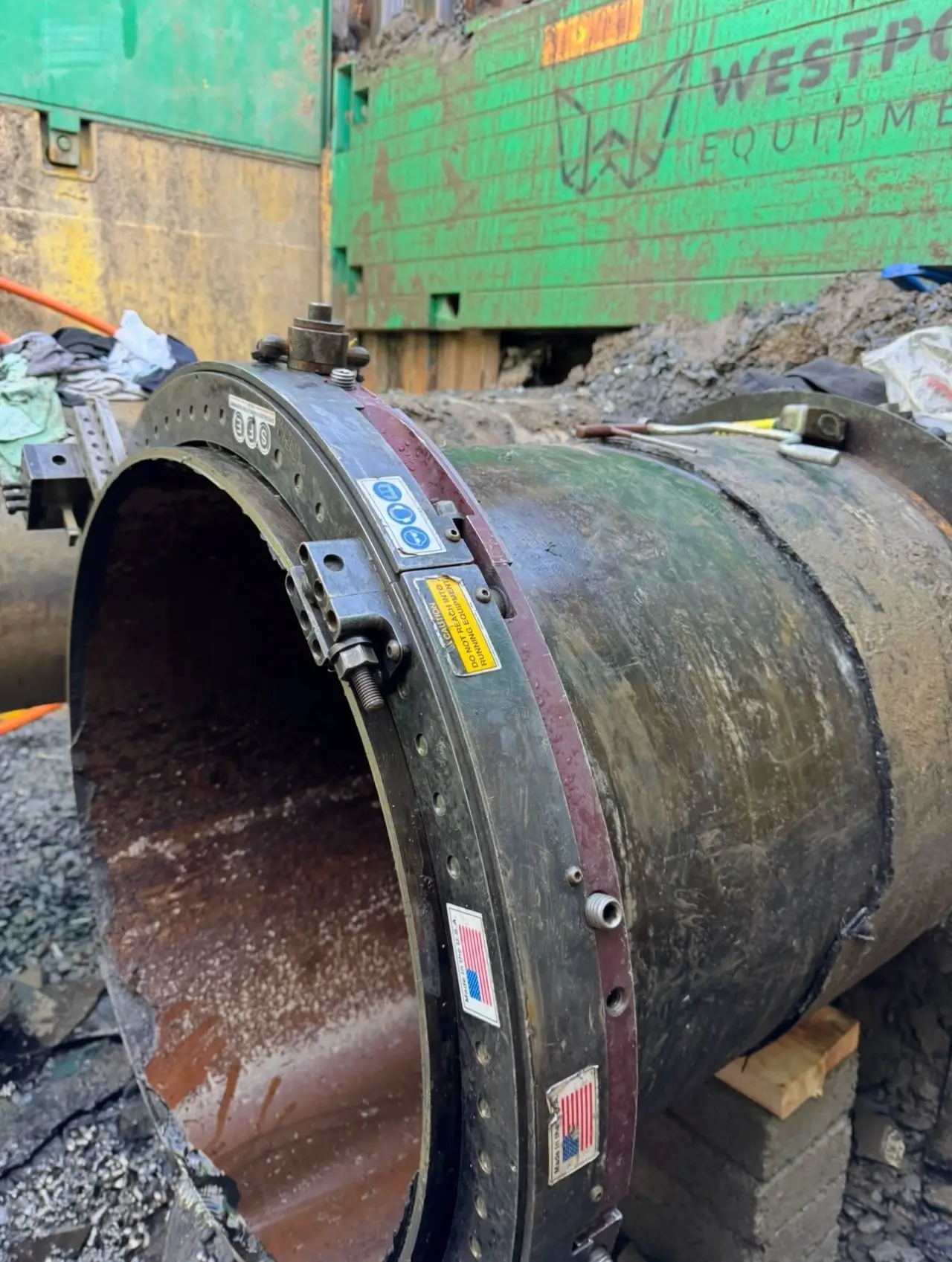

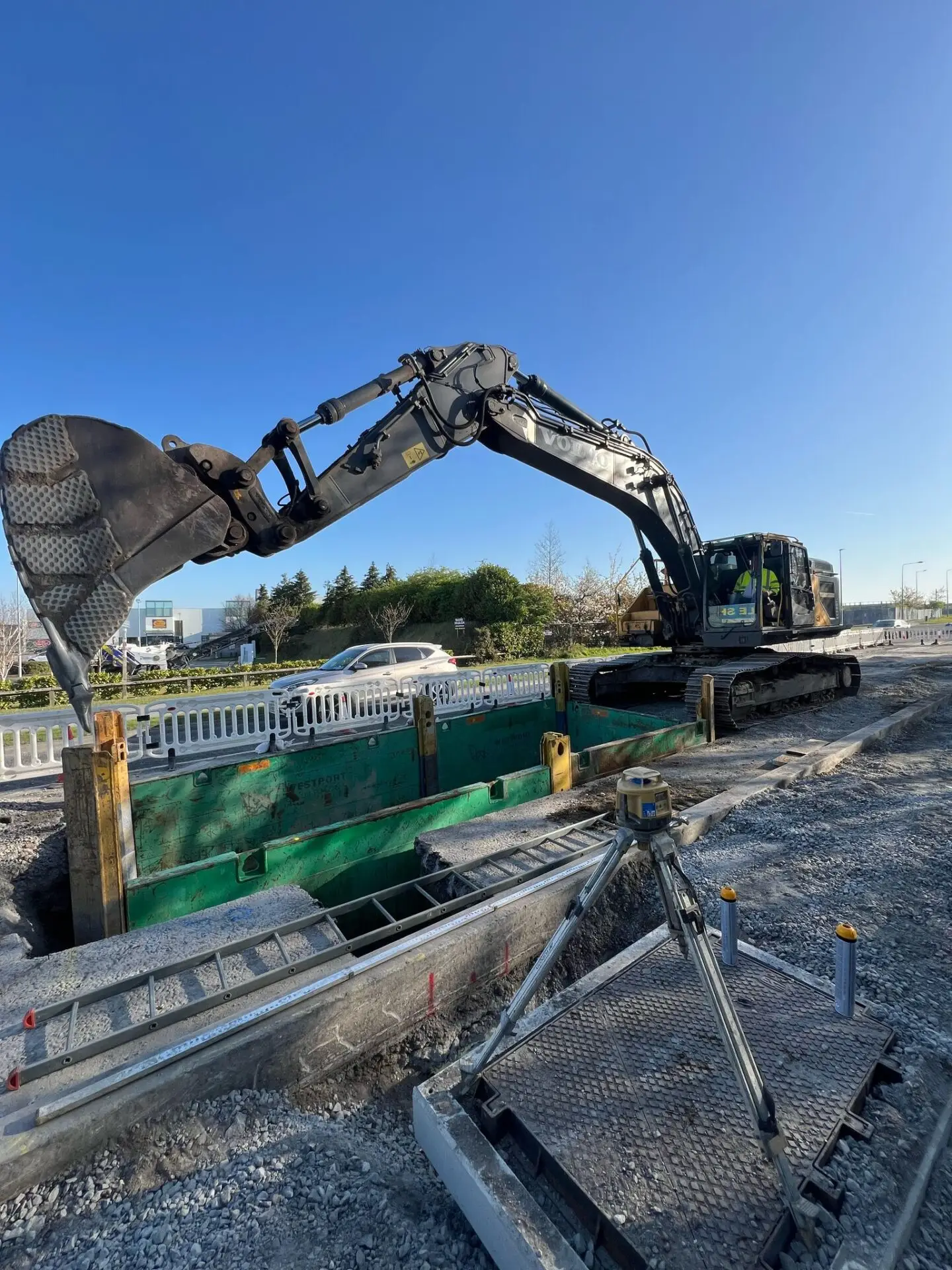

GALLERY OF IMAGES
