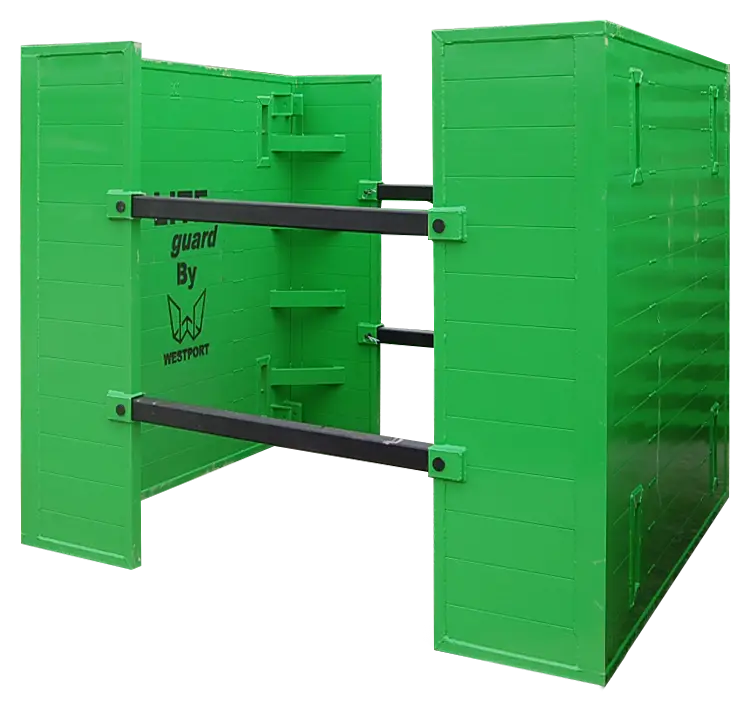

Lightweight Aluminium Manhole Box

Lightweight Aluminium Manhole Box​

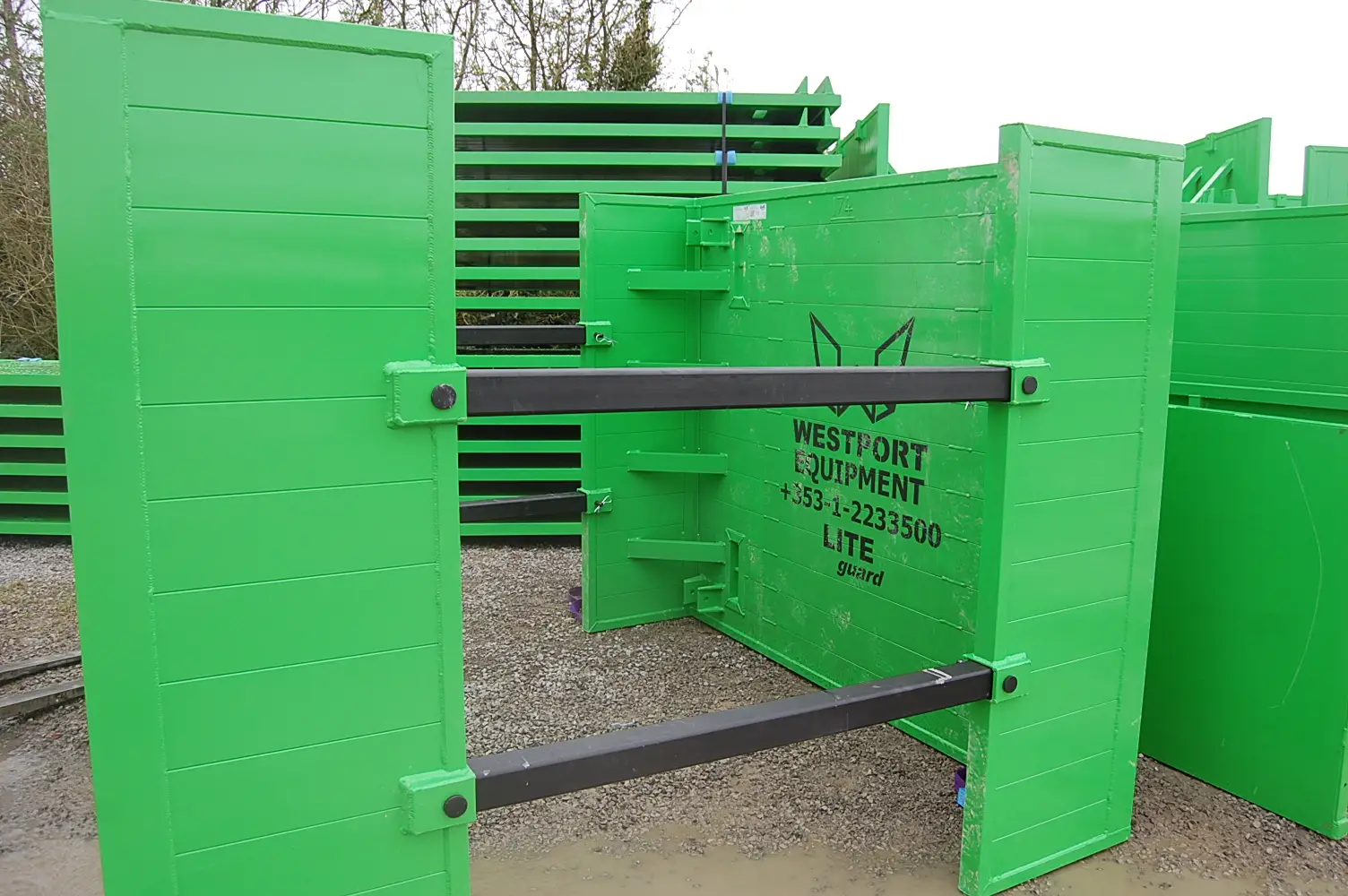

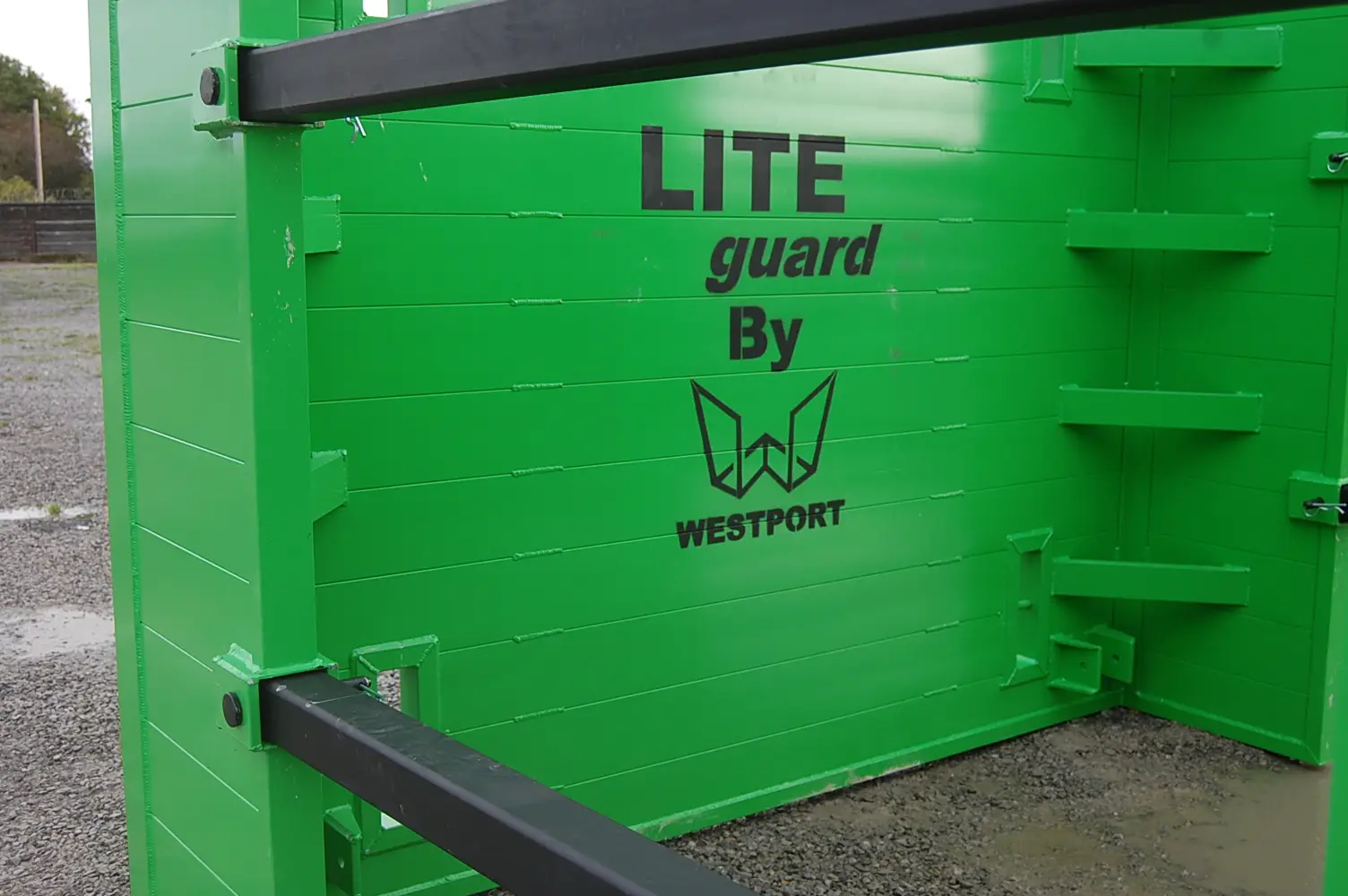

The Manhole Box is a lightweight Aluminium Box with equivalent strength to similarly sized steel boxes. The Manhole Box is ideally suited for use with excavators between 4.5 tonnes and 7 tonnes allowing smaller plant to provide a quick and easy shoring solution.

The Panel length is 2509mm square in a plan by 1965mm high.

This product with an assembled weight of only 507 kgs will easily travel to the site in a small pick up allowing lighter vehicle movements and reducing your carbon footprint compared to heavier equipment of similar size.

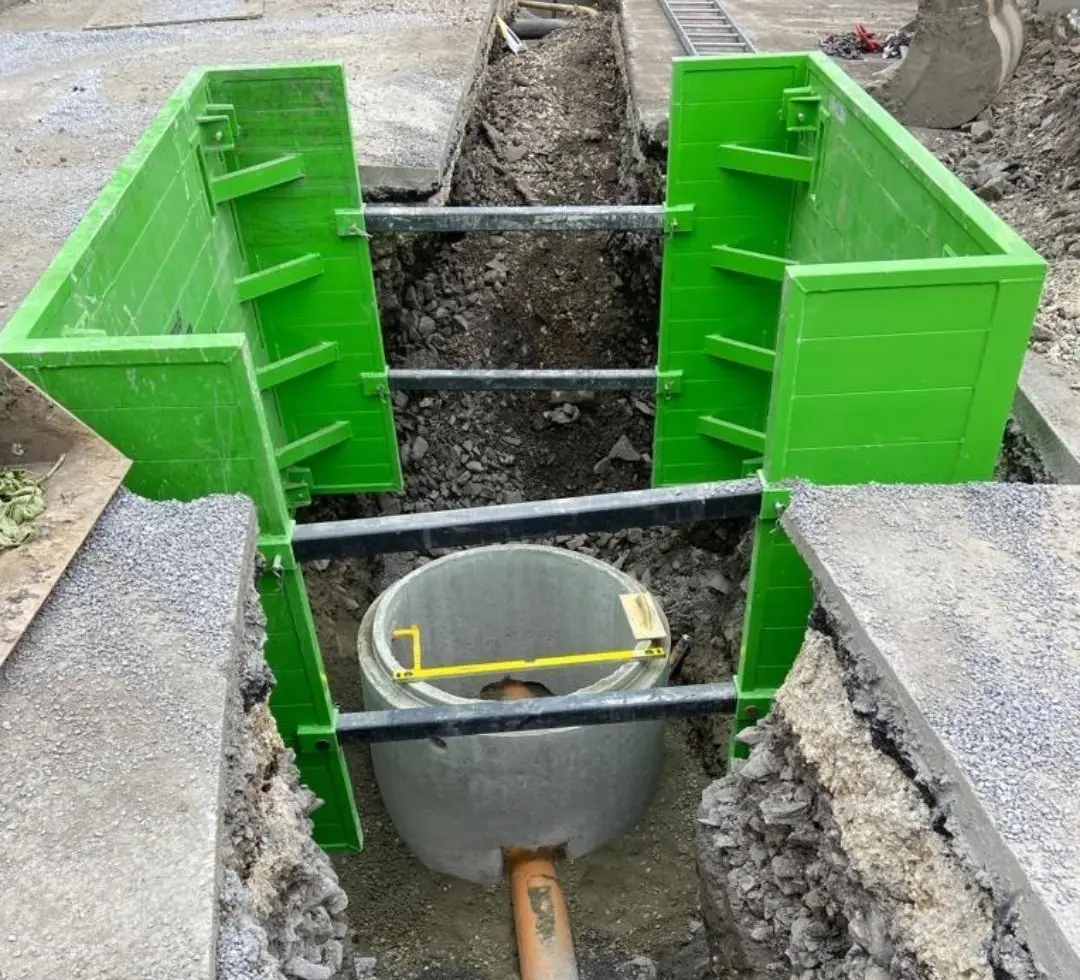

The lighter weight of these boxes allows a dig-and-place scenario where the pit can be excavated and a pair of boxes stacked can easily be lifted into the trench by a single excavator in one lift if site conditions allow.

  • Working Panel Pressures of up to 30kN/m2.
  • Boxes are manufactured to EN 13331-1 & EN13331-2 -036.

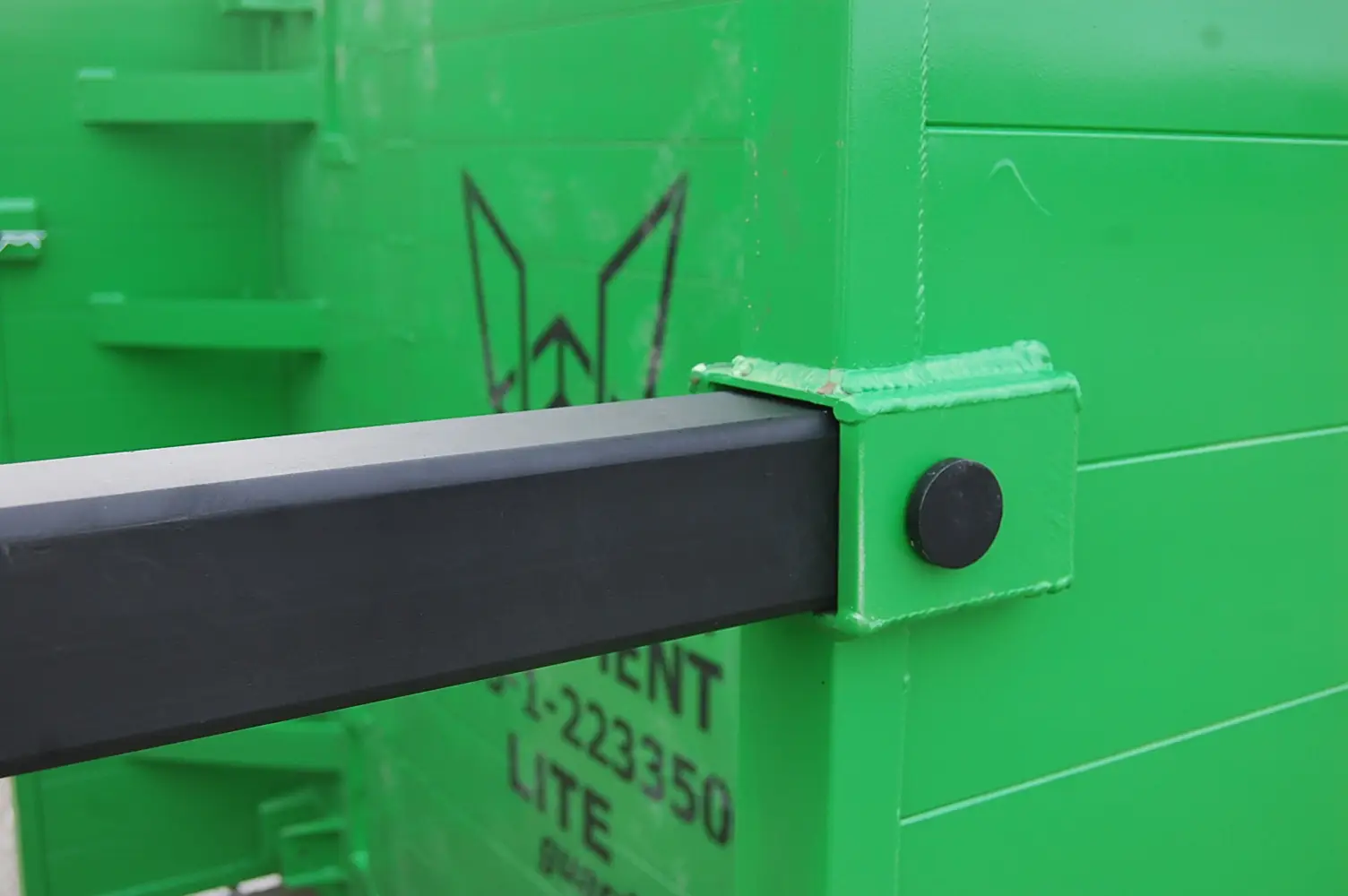

  • 560mm clearance under struts.

These are available from stock at our Dunboyne Depot for Hire or Sale, pricing on request.

AVAILABLE FOR HIRE

Or contact us by email
sales@westportequipment.com

TECHNICAL INFORMATION

Box Weight:
Assembled Weight 507 kgs

System Depth:
Up to 6m Deep

Panel Size:
2509mm square by 1965mm high

Trench Width:
2400mm by 2400mm
