Description
| Type | Wy cm3/m | Ly cm4/m | Width mm | Height mm | Thickness mm | Weight kg/m | Weight kg/m2 |
|---|---|---|---|---|---|---|---|
| KD 6/6 | 182 | 726 | 600 | 78 | 6,0 | 37,5 | 62,5 |
| KD 6/8 | 242 | 968 | 600 | 80 | 8,0 | 50,0 | 83,3 |

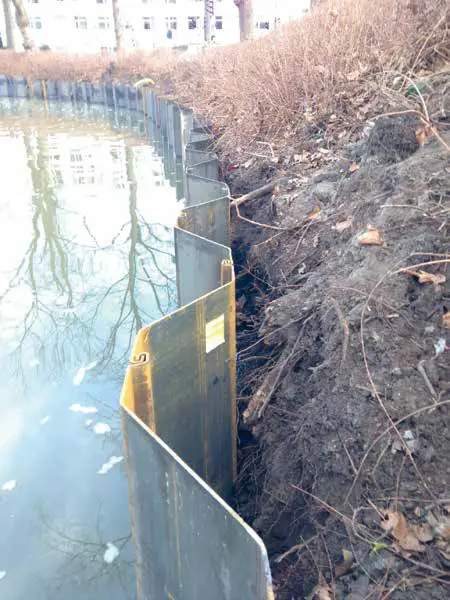

It can be used in a variety of applications:
Manufactured in accordance with:
Technical delivery conditions in accordance with EN 10249-1. Tolerances in accordance with EN 10249-2
Steel qualities:
S 235, S 275, S 355 or Equivalent with 3.1 Certificate in accordance with EN 10204.
Standard availability:
Lengths up to 24.000 mm, longer lengths on request.
| Type | Wy cm3/m | Ly cm4/m | Width mm | Height mm | Thickness mm | Weight kg/m | Weight kg/m2 |
|---|---|---|---|---|---|---|---|
| KD 6/6 | 182 | 726 | 600 | 78 | 6,0 | 37,5 | 62,5 |
| KD 6/8 | 242 | 968 | 600 | 80 | 8,0 | 50,0 | 83,3 |
