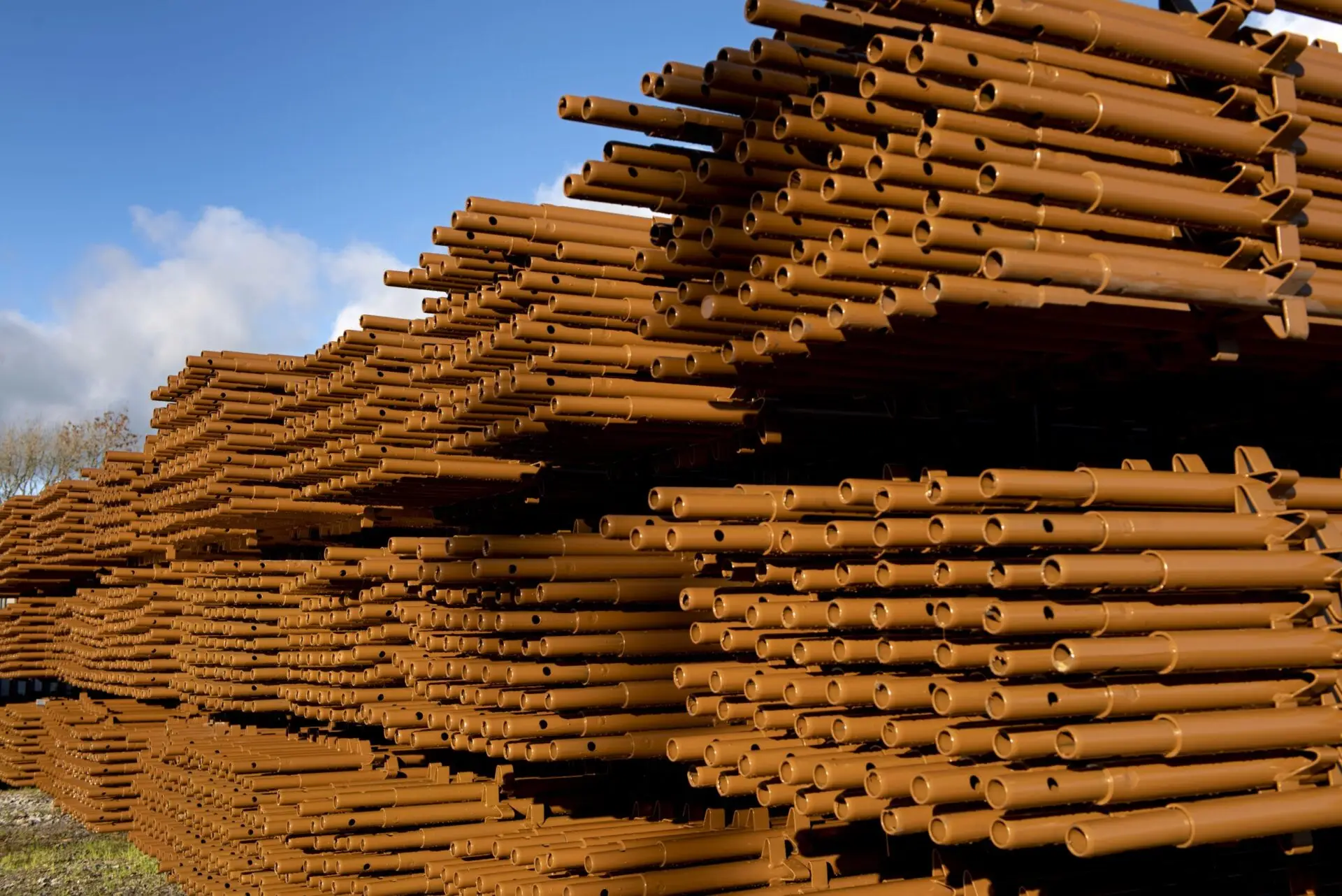

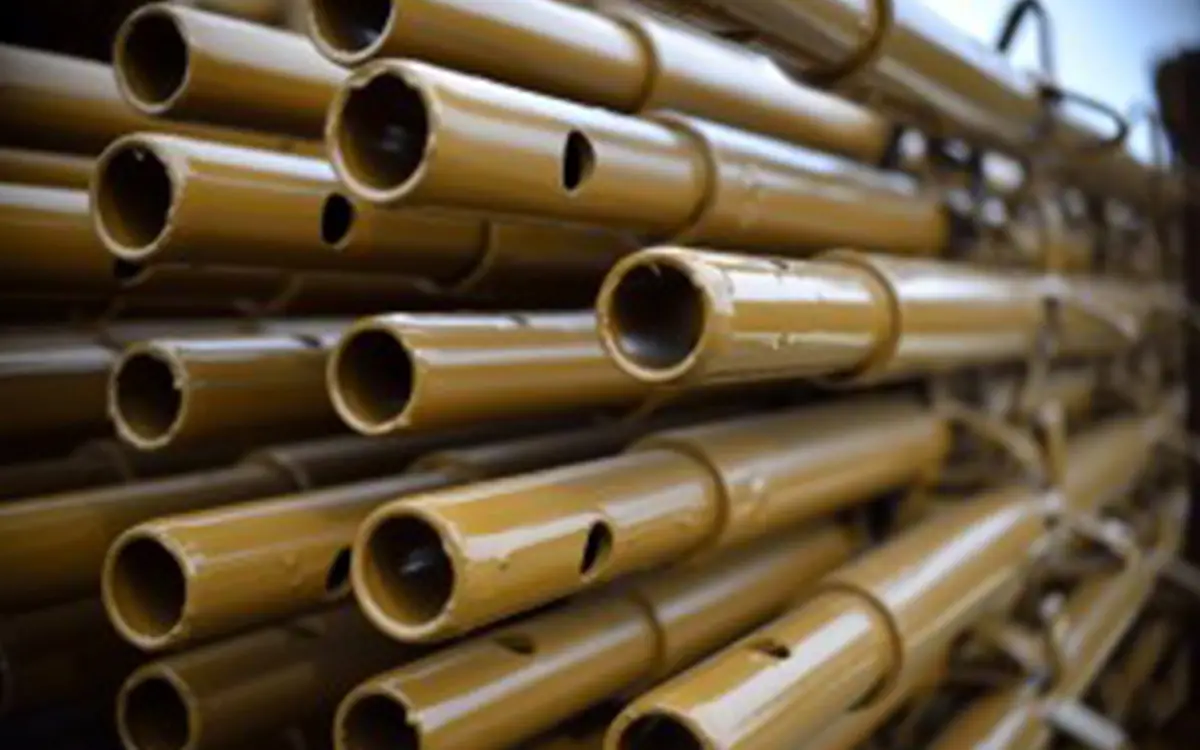

3m Standard w/Spigot The standard is the core vertical component of the Kwikstage system, they can be joined vertically to increase system height. Transoms, ledgers and hop up brackets are joined to the standards using the captive wedge and V Shaped fittings
Height 3.0m Choose an option 3.0m 2.0m 1.5m 1.0m
Standard w/Spigot quantity
2m Standard w/Spigot Height 2.0m Choose an option 3.0m 2.0m 1.5m 1.0m
Standard w/Spigot quantity
1.5m Standard w/Spigot Height 1.5m Choose an option 3.0m 2.0m 1.5m 1.0m
Standard w/Spigot quantity
1.0m Standard w/Spigot Height 1.0m Choose an option 3.0m 2.0m 1.5m 1.0m
Standard w/Spigot quantity
2.4m Ledger The ledger provides the tie between standards along the length of the scaffold. These are also used as guard rails. A wedge allows the ledger connect to the vertical standard
Length 2.4m Choose an option 2.4m 1.8m
Ledger quantity
1.8m Ledger Length 1.8m Choose an option 2.4m 1.8m
Ledger quantity
1.2m Transom The transom is used connecting standards across the width of the scaffold. An inverted “T” section is used which provides a seating for the Battens and the steel stages to rest upon. These are available in the system sizes listed below. Loading bay and Access Transoms are also available.
Length 1.2m Choose an option 1.2m 0.8m 0.56m - Two Board
Transom quantity
0.8m Transom Length 0.8m Choose an option 1.2m 0.8m 0.56m - Two Board
Transom quantity
0.56 Transom - Two Board Length 0.56m - Two Board Choose an option 1.2m 0.8m 0.56m - Two Board
Transom quantity
Return Transom 1.2m Return transoms allow a 90 degree turn in the scaffold and sit over the ledger allowing boards to run at right angles in adjacent bays
Return Transom 1.2m quantity
Loading Bay Transom Our Loading Bay Transoms is an essential component of the Kwikstage scaffolding system. Manufactured from High Grade premium steel they provide the required support for a loading bay structure. Three should be used in an 8 foot square bay
Loading Bay Transom quantity

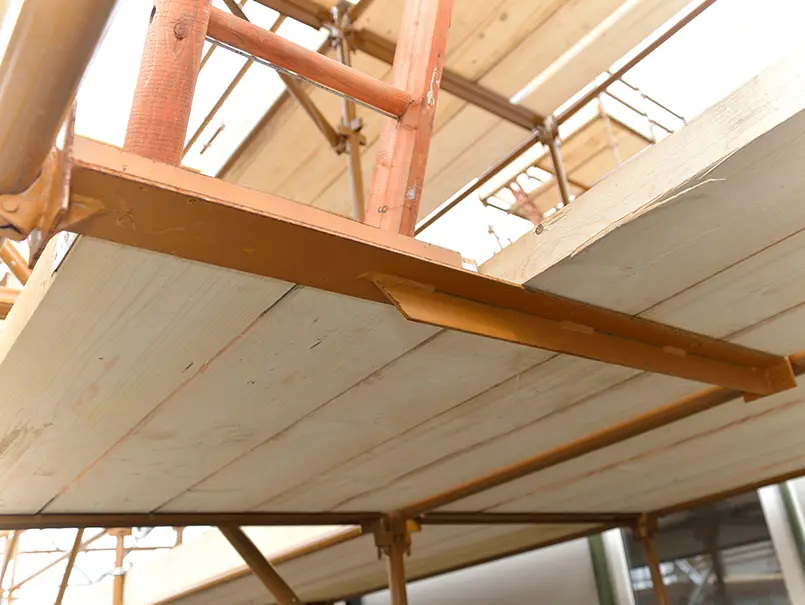

Ladder Access Transom 1.2m Ladder access transoms are used to provide an opening within the scaffolding bay to allow the ladder to pass through, the transom clamps to the adjacent ledgers allowing 1.2m boards to sit in a standard bay
Ladder Access Transom 1.2m quantity
Ladder Access Gate Sprung gate which attached to any 48mm OD vertical tube using integrated couplers
Ladder Access Gate quantity
Three Board Hop up Brackets Hop up brackets allow an extension to the width of the scaffold by either one, two or three board widths
Widths Three Board Choose an option One Board Two Board Three Board
Hop up Brackets quantity
Two Board Hop up Brackets Widths Two Board Choose an option One Board Two Board Three Board
Hop up Brackets quantity
One Board Hop up Brackets Widths One Board Choose an option One Board Two Board Three Board
Hop up Brackets quantity
3.6m Diagonal Brace Diagonal Braces tie the vertical members together and provide resistance to sway and wind loadings. The braces also square and align the system, the 2.0m brace suits a 1.2m by 1.5m bay.
Height 3.6m Choose an option 3.6m 1.8m
Diagonal Brace quantity
1.8m Diagonal Brace Height 1.8m Choose an option 3.6m 1.8m
Diagonal Brace quantity
2.4m Tie Bar Tie bars prevent the 1, 2 and 3 board hop ups from splaying.
Height * Choose an option 2.4m 1.8m 1.2m
Tie Bar quantity
1.8m Tie Bar Height 1.8m Choose an option 2.4m 1.8m 1.2m
Tie Bar quantity
1.2m Tie Bar Height 1.2m Choose an option 2.4m 1.8m 1.2m
Tie Bar quantity
Toe Board Bracket The toe board bracket is used to hold a toe board in position along the length of the scaffold.
Toe Board Bracket quantity
End Toe Board Bracket The end toe board bracket is used to hold a toe board in position on the width of the scaffold.
End Toe Board Bracket quantity
Sole Board 500mm Soleboards are timber planks used under the standards to provide load bearing
Sole Board 500mm quantity
2.4m Timber Kwikstage Batten BS2482 Our boards are sourced in Europe from sustainable plantations of white wood. Ends are banded and boards graded to BS 2482. Be assured we source our boards from PEFC-certified sustainably managed forests that have been verified by independent experts to ensure they are managed in line with strict international standards.
size 2.4m Choose an option 2.4m 1.8m 1.2m
Timber Kwikstage Batten BS2482 quantity
1.8m Timber Kwikstage Batten BS2482 size 1.8m Choose an option 2.4m 1.8m 1.2m
Timber Kwikstage Batten BS2482 quantity
1.2m Timber Kwikstage Batten BS2482 size 1.2m Choose an option 2.4m 1.8m 1.2m
Timber Kwikstage Batten BS2482 quantity
Galv Base Jack 4 Tonne Screw Jacks are positioned at the bottom of the standards, they provide 450mm of adjustment to cope with variation in ground level beneath the scaffold
Galv Base Jack 4 Tonne quantity
