Slide Rail Tie Back

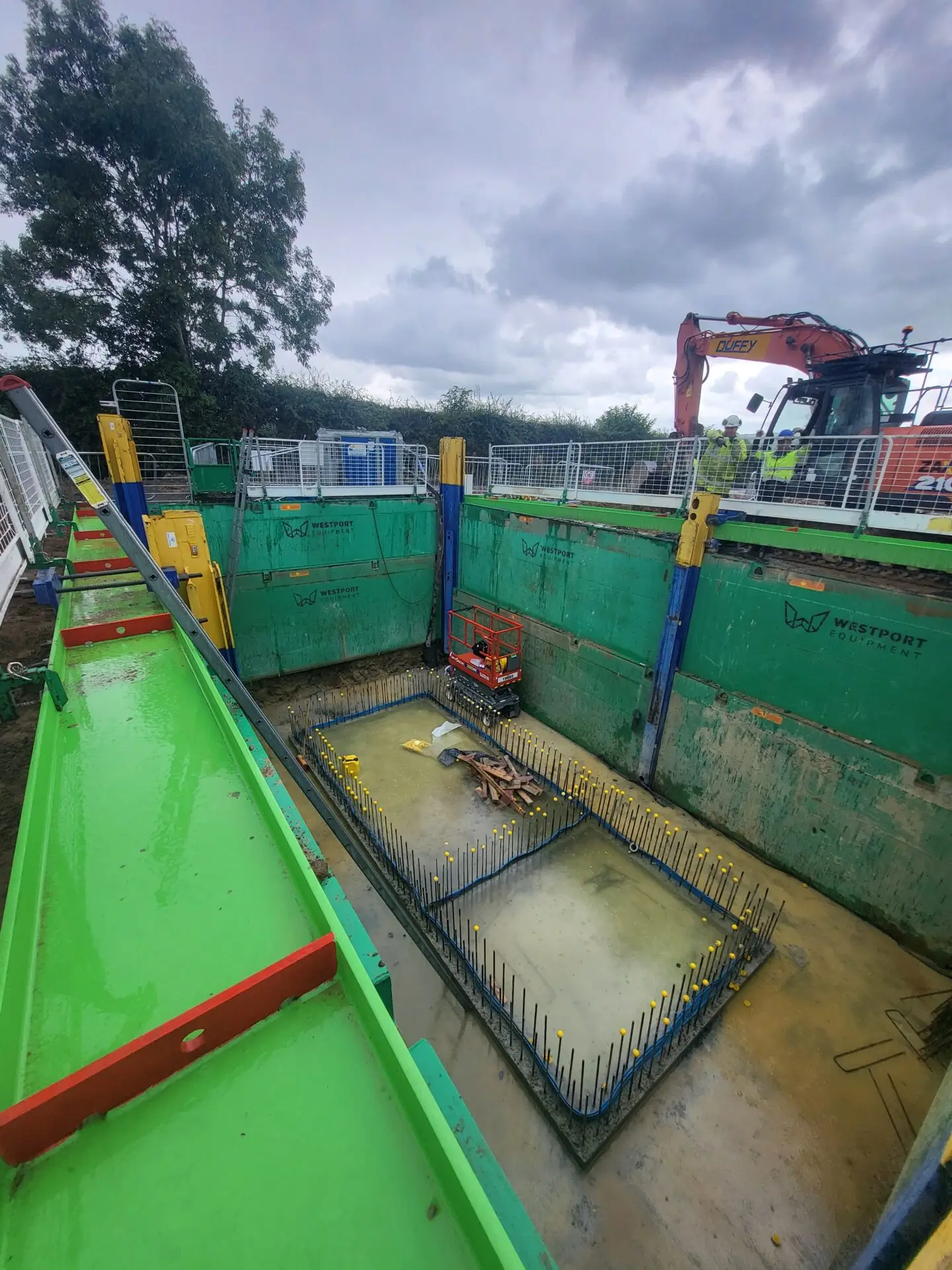

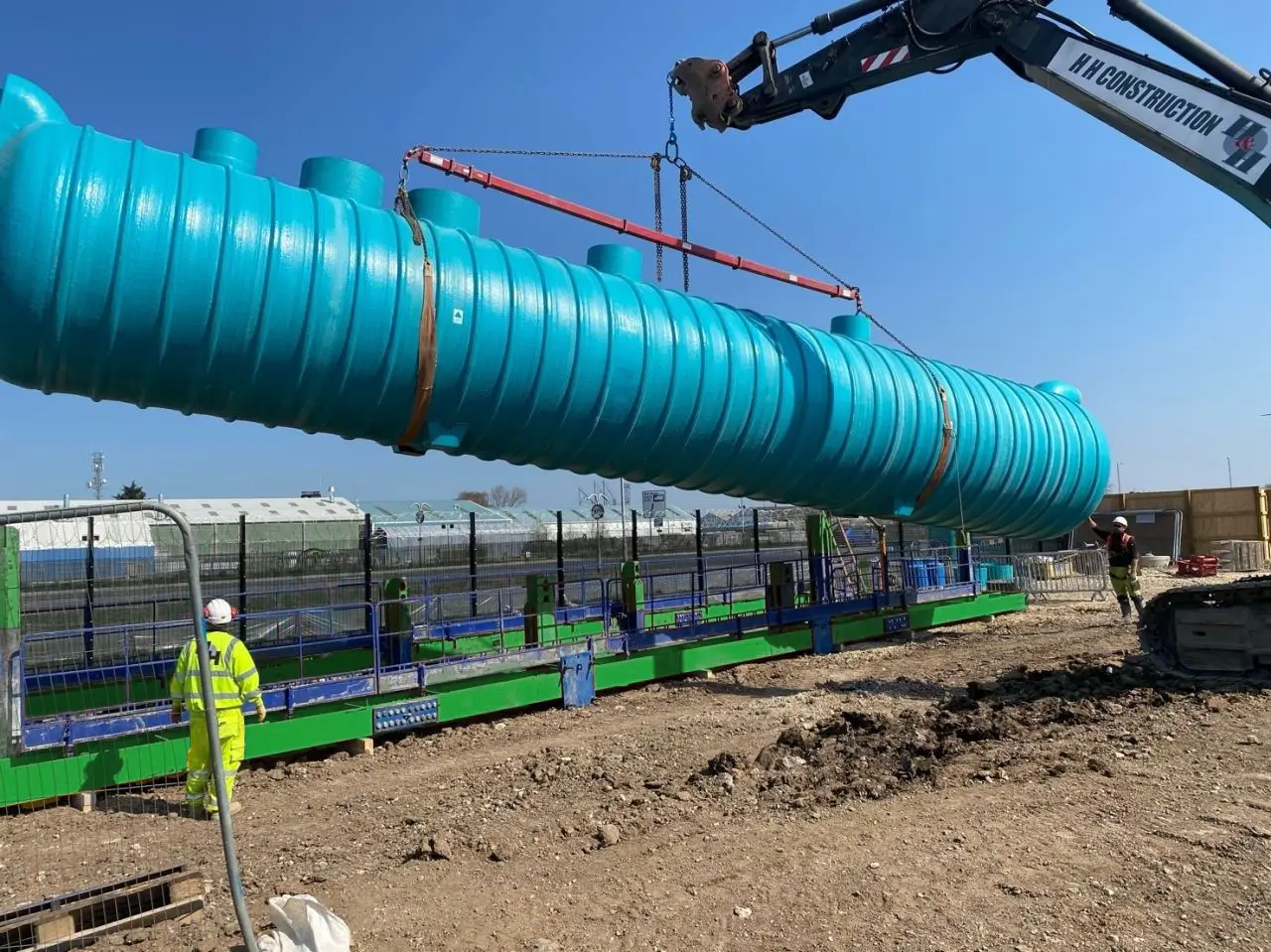

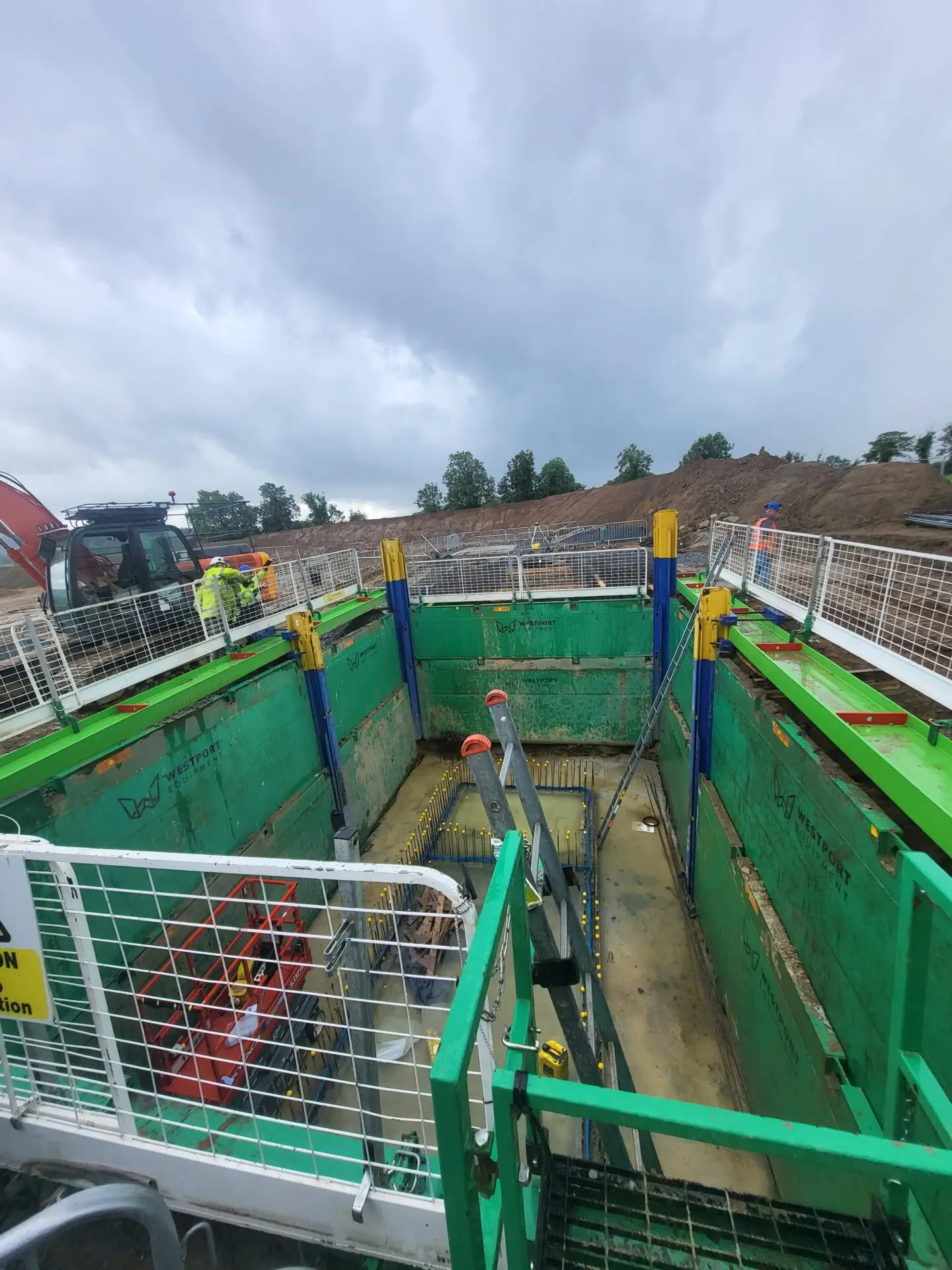

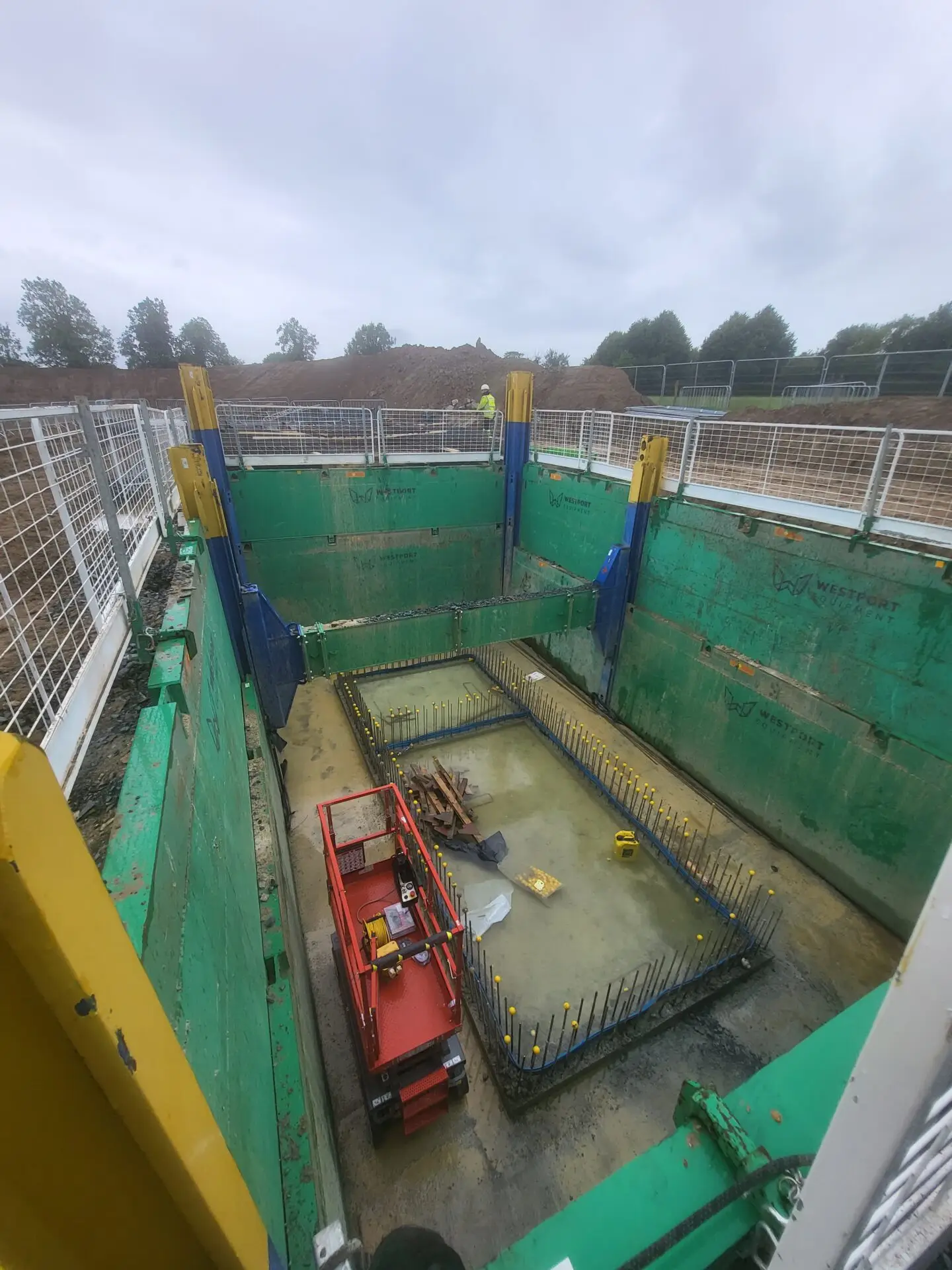

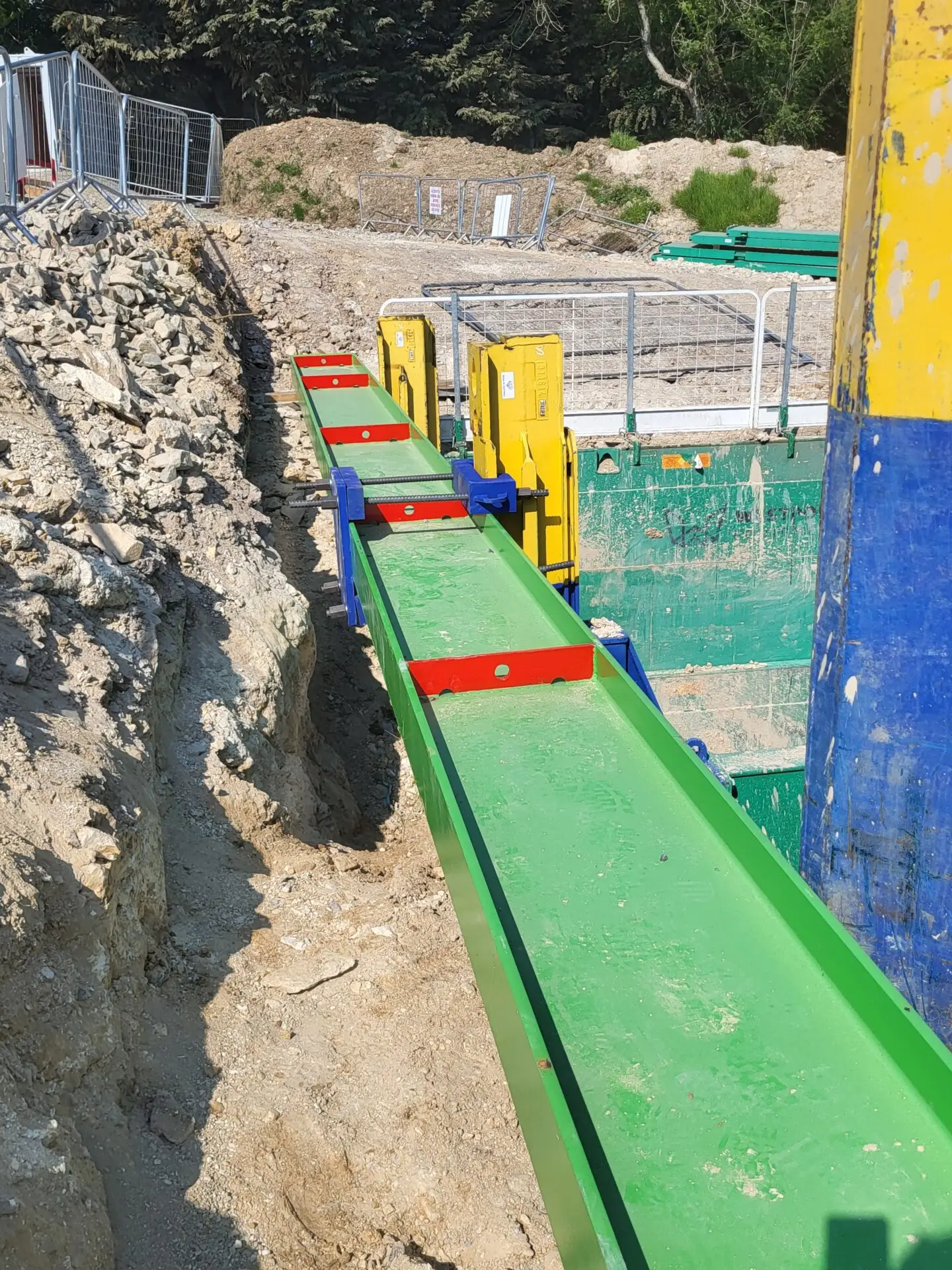

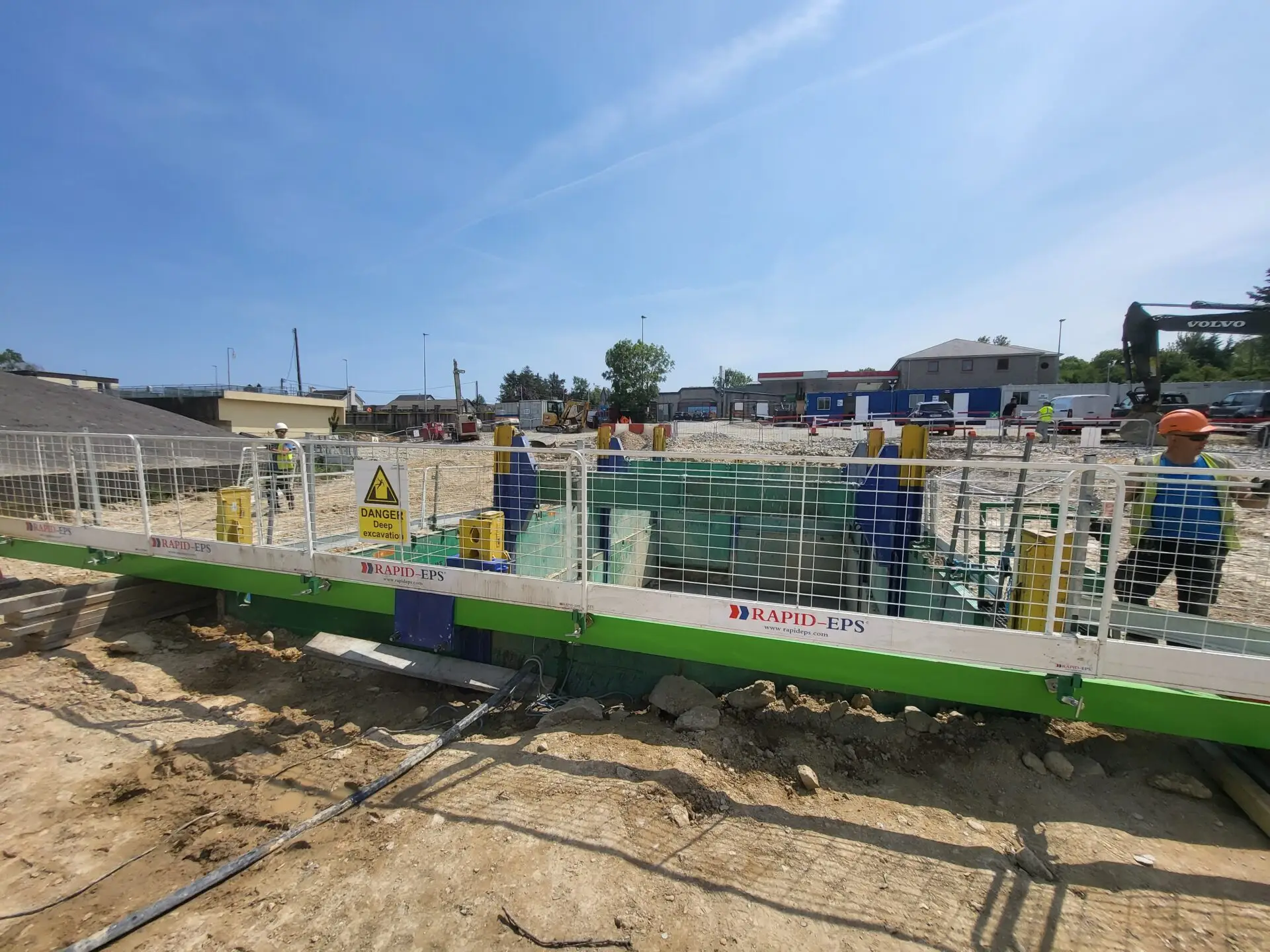

Slide Rail can adopt a unique tie back system which enables a clear open excavation for tank installations as well as other large underground structures.
By using this innovative system, maximum clear spans of up to 26m x 8m can be achieved without the need for any internal frames, enabling a reduced excavation footprint and commercial benefits surrounding backfill material within the support system.
Please contact us for further information or to make use of our in-house engineering design services.
TECHNICAL INFORMATION
Panel Range
| PANEL LENGTH - L(m) | PANEL HEIGHT - H(m) | PANEL THICKNESS tPL (mm) | INTERNAL BETWEEN ROLLING STRUT (m) | EXTERNAL LS (m) | MAX. PERM. EARTH PRESSURE (kN/m2) | WEIGHT (kg) |
|---|---|---|---|---|---|---|
| 2.0 | 2.4 | 107 | 1.8 | 2.77 | 158.2 | 550 |
| 1.4 | 355 | |||||
| 2.5 | 2.4 | 2.3 | 2.77 | 101.2 | 650 | |
| 1.4 | 420 | |||||
| 3.0 | 2.4 | 2.8 | 3.27 | 70.3 | 770 | |
| 1.4 | 495 | |||||
| 3.5 | 2.4 | 3.3 | 3.77 | 51.6 | 900 | |
| 1.4 | 580 | |||||
| 4.0 | 2.4 | 130 | 3.8 | 4.27 | 82.1 | 1370 |
| 1.4 | 880 | |||||
| 4.5 | 2.4 | 4.3 | 4.77 | 64.9 | 1530 | |
| 1.4 | 980 | |||||
| 5.0 | 2.4 | 4.8 | 5.27 | 52.6 | 1690 | |
| 1.4 | 1070 | |||||
| 5.5 | 2.4 | 5.3 | 5.77 | 43.4 | 1850 | |
| 1.4 | 1170 | |||||
| 6.0 | 2.4 | 5.8 | 6.27 | 36.5 | 2210 | |
| 1.4 | 1370 | |||||
| 6.5 | 2.4 | 150 | 6.3 | 6.77 | 36.5 | 2581 |
| 1.4 | 1620 | |||||
| 7.0 | 2.4 | 6.8 | 7.27 | 36.5 | 2780 | |
| 1.4 | 1744 | |||||
| 8.0 | 2.4 | 170 | 7.8 | 8.27 | 35.2 | 4000 |
| 1.4 | 2500 |
Linear Rail
| DESIGNATION | RAIL LENGTH L T (m) | WEIGHT PER RAIL (kg) | MAX. PERM. BEND. MOMENT (kNm) |
|---|---|---|---|
| SINGLE - SERIES 790 | 3.5 | 540 | 307 |
Corner Rail
| DESIGNATION | RAIL LENGTH L T (m) | WEIGHT PER RAIL (kg) | MAX. PERM. BEND. MOMENT (kNm) |
|---|---|---|---|
| SINGLE - SERIES 790 | 3.5 | 390 | 132 |
| 4-SIDED CORNER RAIL | 4.0 | 880 |
Rolling Strut
| DESIGNATION | RS LENGTH LRS (m) | RS WIDTH BRS (m) | FLANGE bF x hF (mm) | MAX. PERM. FORCES (kN) | WEIGHT PER RS PAIR (kg) |
|---|---|---|---|---|---|
| SINGLE RS | 1.24 | 0.62 | 405 x 420 | -100 to 639 | 620 |
| DOUBLE RS | 2.04 | 0.62 | 405 x 720 | -200 to 780 | 980 |
