7.1 m Drag Box

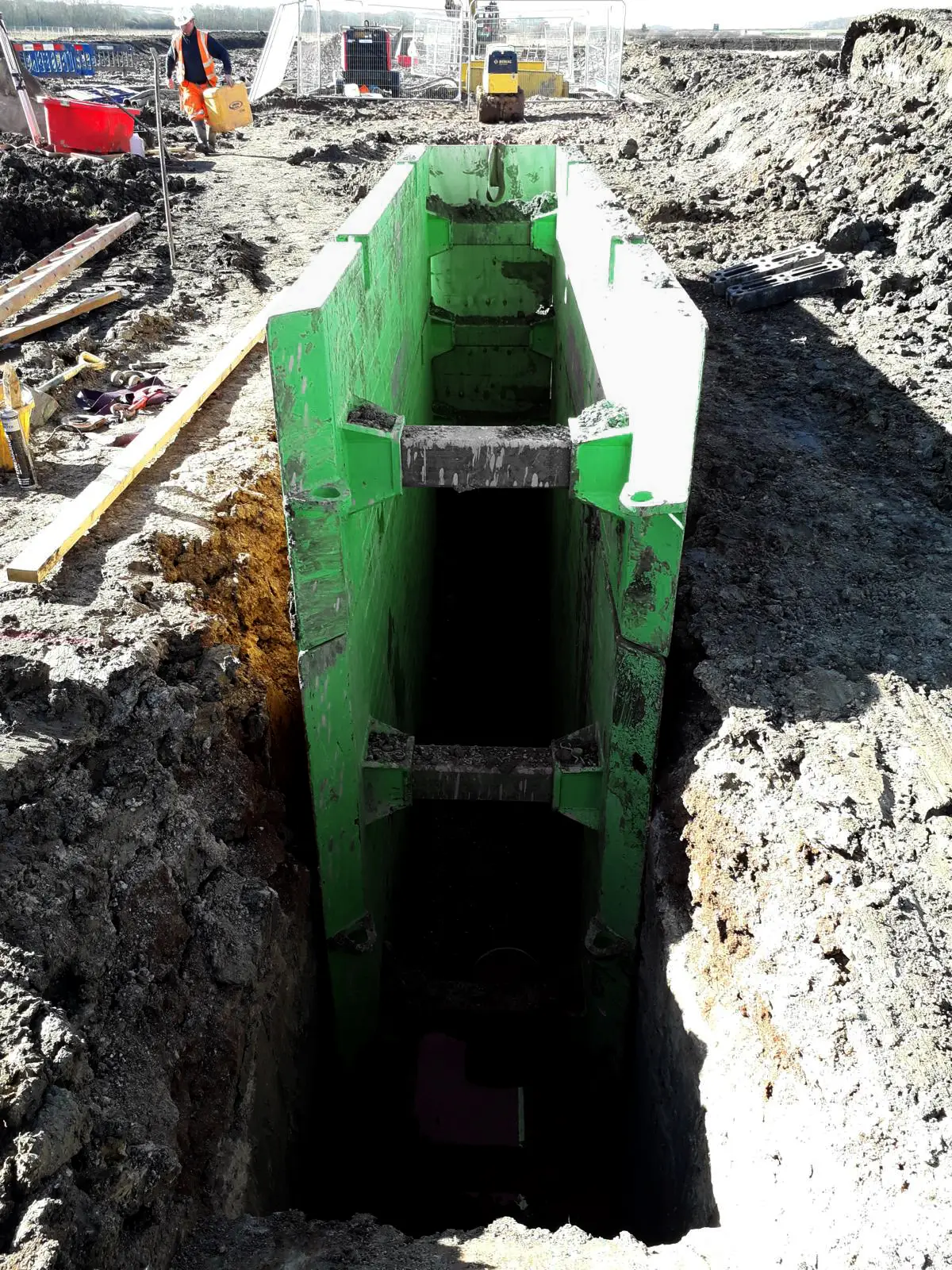

The Drag Box is designed for trench shoring constructions outside the city and for stable soils.

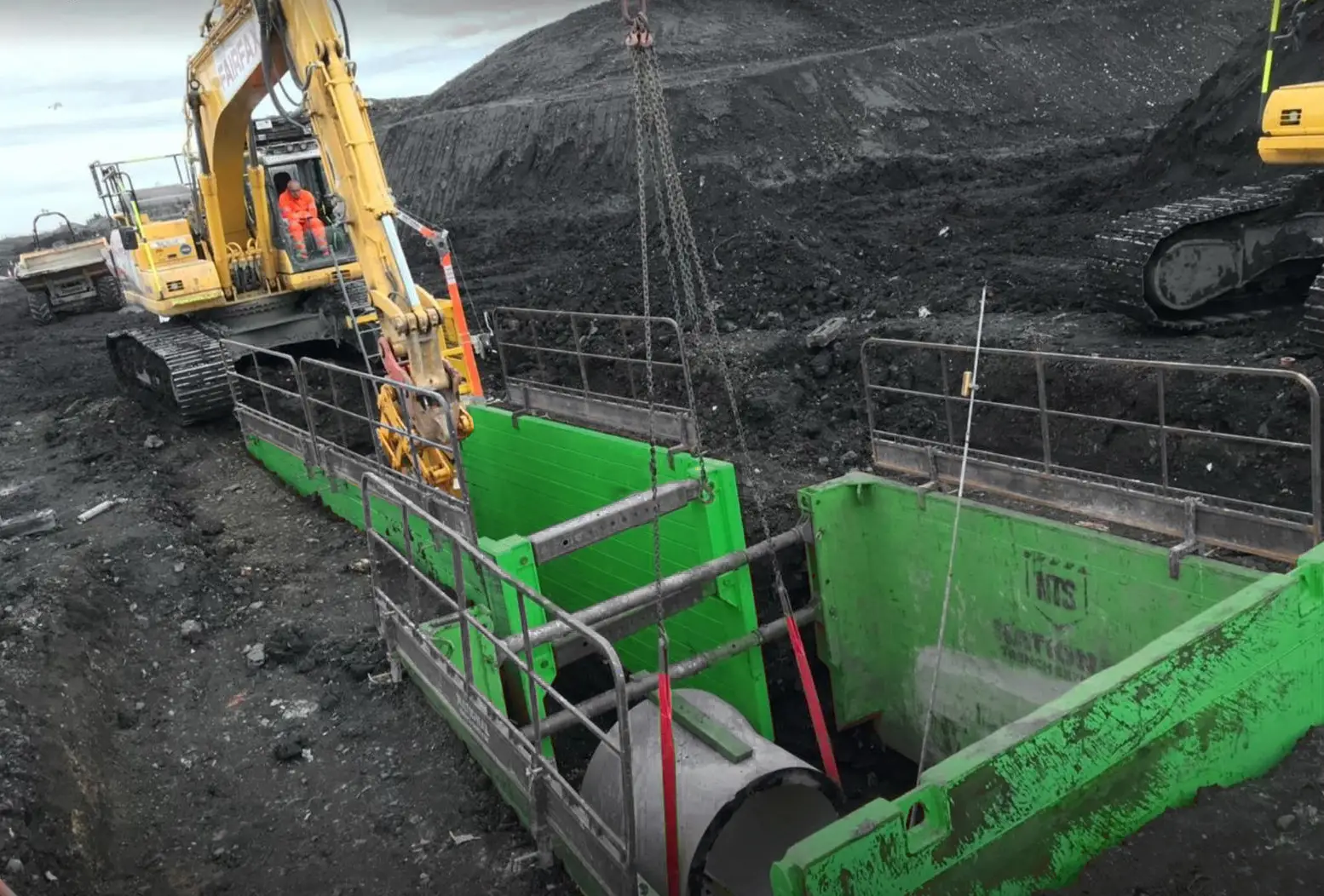

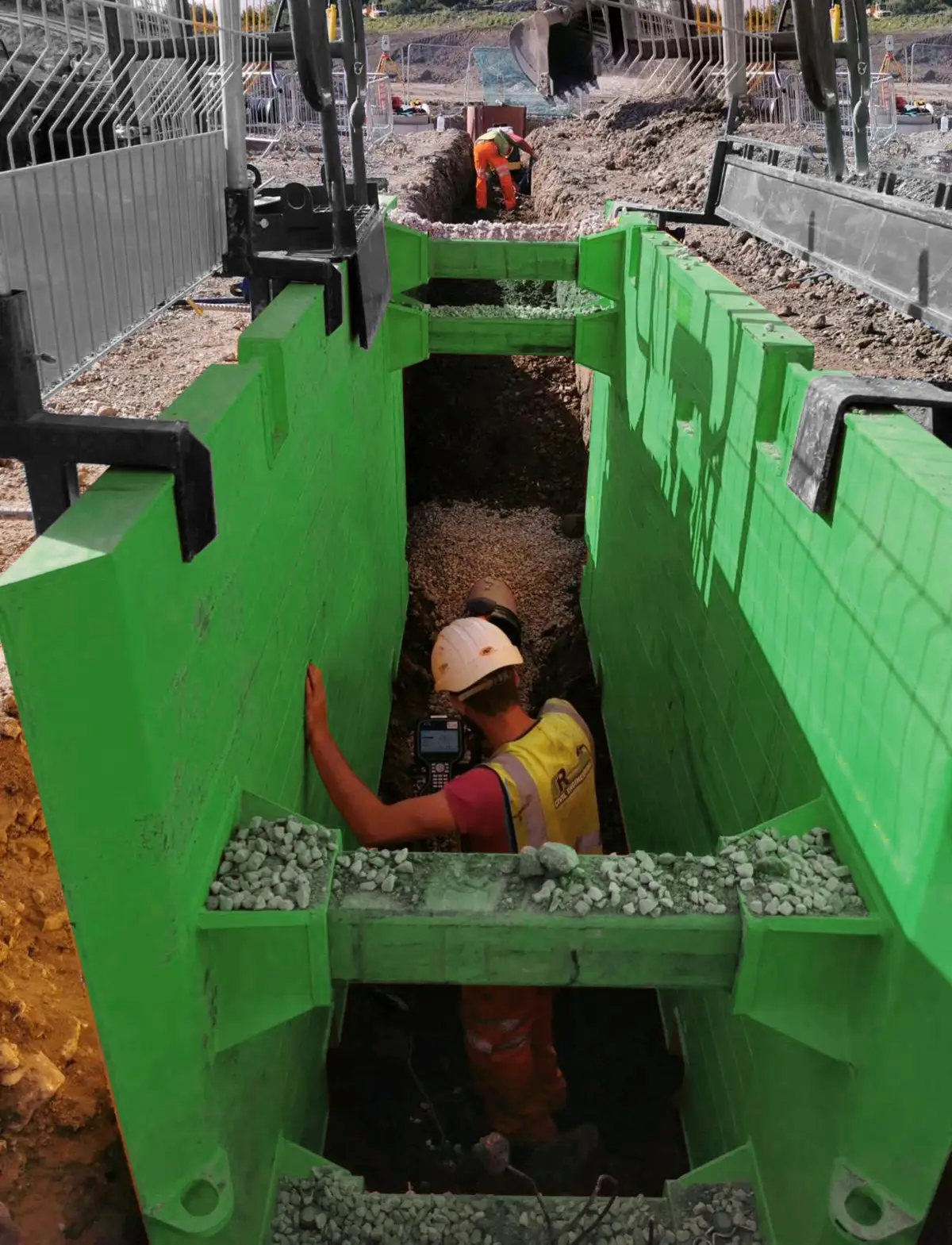

Drag boxes do not support the side walls of the excavation, the work is carried out in advance, and then the trench drag box is pulled through the dug-up trench to a new working position.

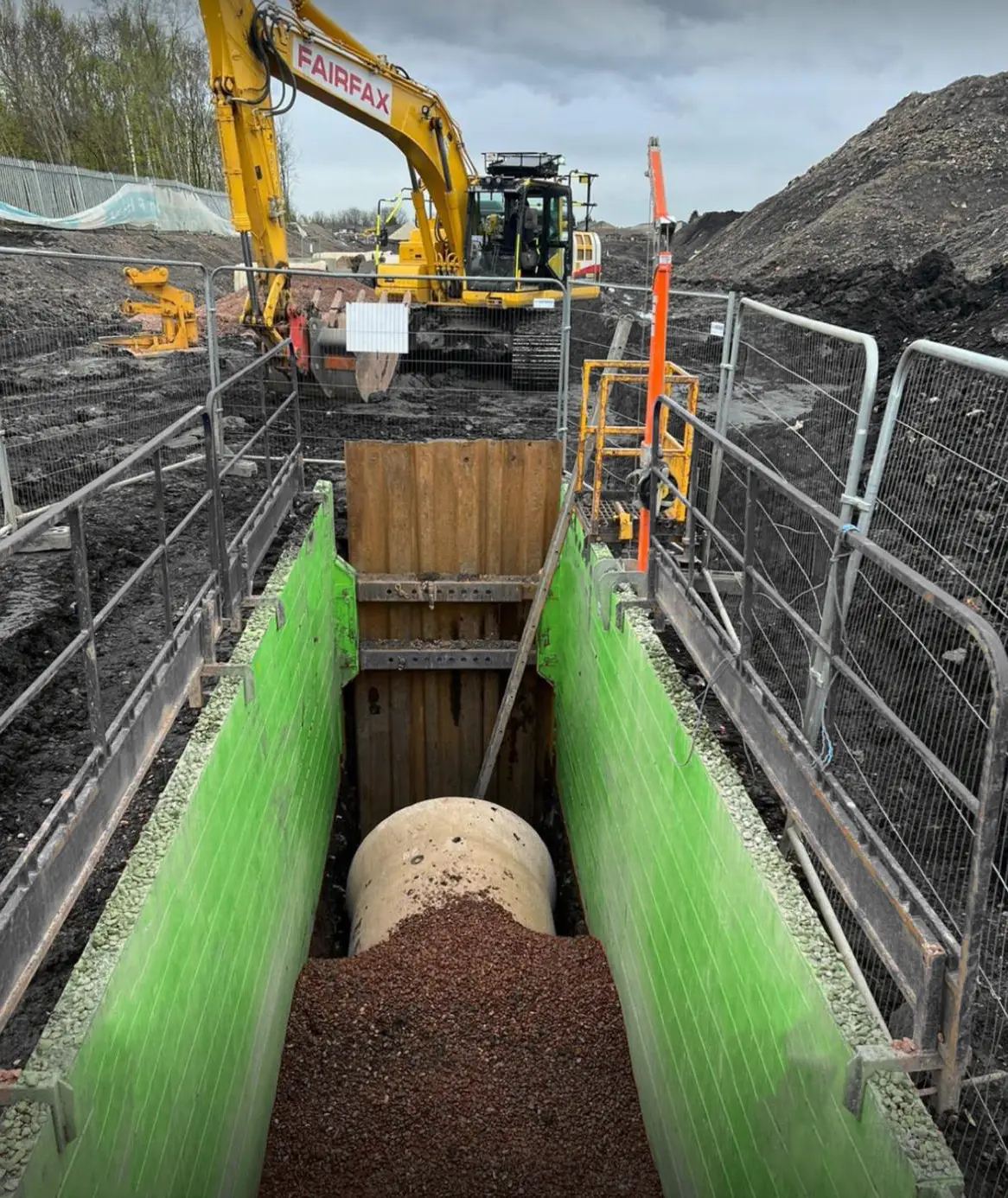

After that, filling and compacting is done behind the drag box, and the pipe can be laid under the protection of the trench shoring plates.
These are available from stock at our Dunboyne Depot for Hire or Sale, pricing on request.
TECHNICAL INFORMATION
Recommended installation depth:
up to 5.00 m
Working:
width 0.80 – 2.00 m
Mobile or crawler excavator:
only basic box: 4.4 – 4.8 t
with extension box: 8.8 – 9.6 t
PANELS
PANEL WEIGHT 2110 kg
Max Depth up to 5.0m
| PANEL LENGTH - L (m) | PANEL HEIGHT - H (m) | FIXED STRUTS LENGTH (mm) | FIXED STRUTS WEIGHT (kg) | MAX. PERM. EARTH PRESSURE (kN/m2) | WEIGHT PER BOX (kg) |
|---|---|---|---|---|---|
| 7.1 | 2.5 | 800 | 58 | 20.0 | 4476 |
| 7.1 | 2.5 | 1000 | 72 | 20.0 | 4532 |
| 7.1 | 2.5 | 1200 | 87 | 20.0 | 4592 |
| 7.1 | 2.5 | 1400 | 101 | 20.0 | 4648 |
| 7.1 | 2.5 | 1600 | 116 | 20.0 | 4708 |
| 7.1 | 2.5 | 1800 | 130 | 20.0 | 4764 |
| 7.1 | 2.5 | 2000 | 144 | 20.0 | 4820 |
